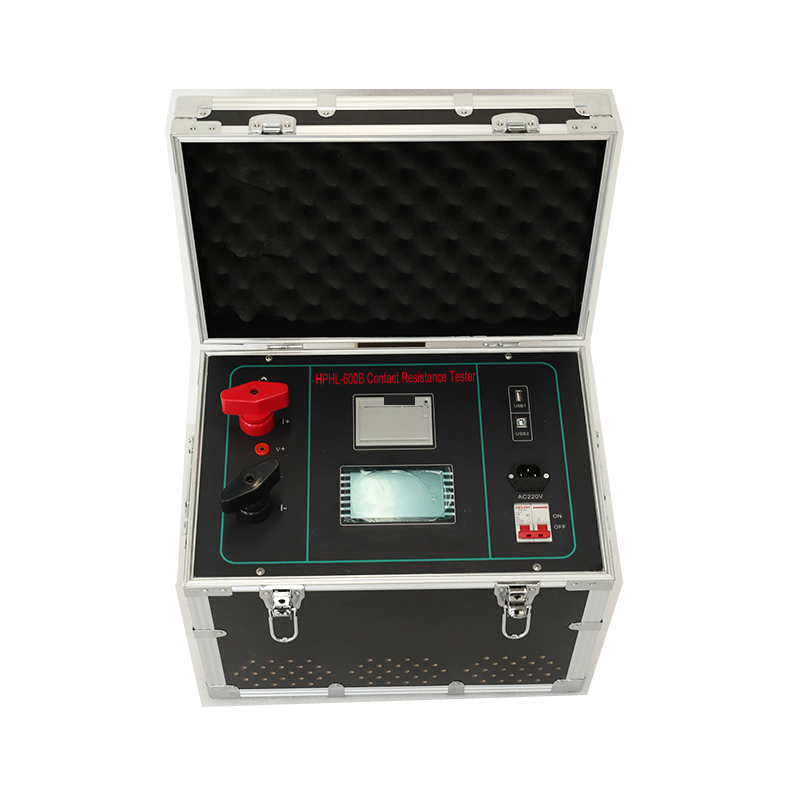

HPHL-600B Contact Resistance Tester (Microhm Meter)
I. Application
² High,middle and low voltage circuit breakers
² High,middle and low voltage disconnecting switches
² High-current bus bar joints
² Cable & Welding joints
It is suitable for high current, micro ohm measurement.
II. Features
l Output high-current continuously.
l Quick and accurate test. Test current is generated from high-precision 100A/200A switching mode constant current power supply, no need for manual adjustment.
l Adopts four-terminal wiring method. The influence of test line resistance on test results is effectively eliminated.
l Stable performance. There is over-heat protection crcuit designed for long-time working.
l Light weight, easy to carry and operate.
III. Specifications
|
Power supply |
AC220V±10%, 50Hz |
|
Power consumption |
≤3500W |
|
Working mode |
Output time can be set. |
|
Test current |
100A, 200A, 300A, 600A |
|
Measurement range |
1-3000μΩ, resolution 0.01μΩ |
|
Accuracy |
1%±0.5μΩ |
|
Working temperature |
-20℃～40℃ |
|
Relative humidity |
≤80%RH (no condensate) |
|
Weight |
6kg |

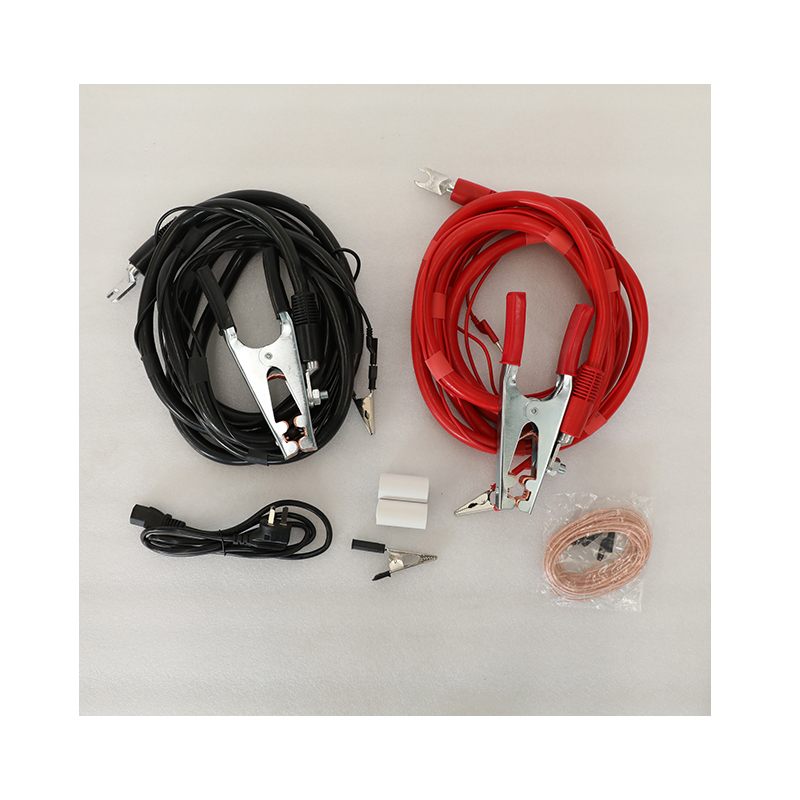

IV. Accessories
Main unit 1 set
Test wire 4 pieces
Power cord 1 piece
Print paper 2 roll
Earth wire 1 piece
Manual 1 copy
Test Report 1 copy
We can customized, welcome to consult with us!
Company Profile
HONOPOWER DEVELOPMENT Co., Ltd. is a professional manufacturer specialized in electrical safety testing equipment, especially high voltage testing equipment.
We had researched and produced and sell test equipment for over ten years,our products have been sold well nationwide and worldwide.
Our test equipment can test for various kinds of products, such as SF6 Gas, GIS Systems,Transformers,Generators, Circuit Breakers, Relays, Surge Arresters, Insulators, Cables, Casings and CT/ PTs, etc.
