Type

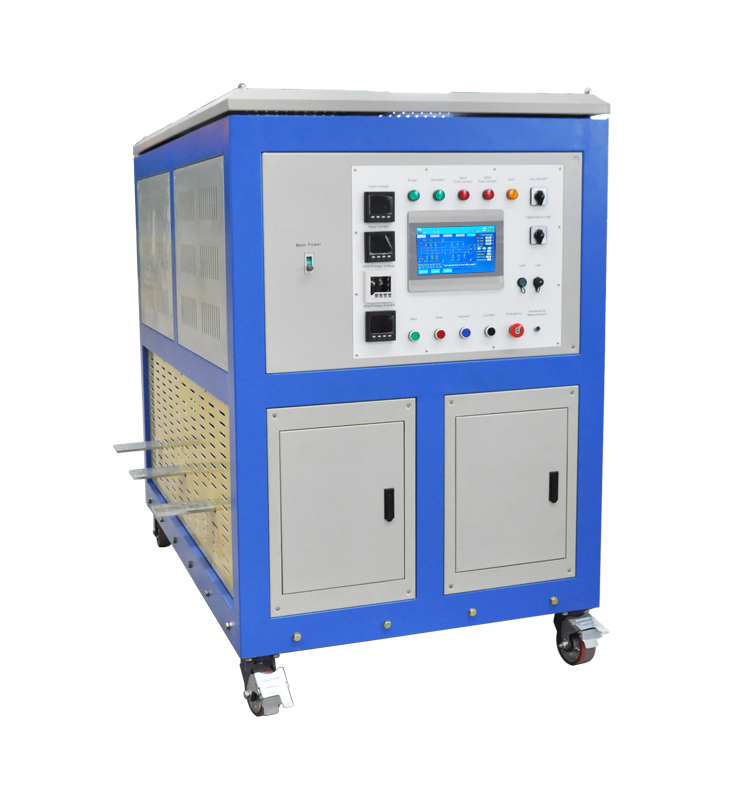

GDSL-A-3000A

Max. Output current

AC Single-phase 3000A*3 groups

Circuit mode

Electric voltage regulator with special craft

Duty cycle

8 hours

AC Input

Phase line

3Φ4W+G

Voltage

415V±10%, 50Hz±2% 3Φ4W

Input current

45A

Output

Phase line

3Φ4W

Voltage

0~6V Auto switching

Current

AC0~3000A continuous adjustable, stepless speed regulation;

3-phase can output at one time, can output single-phase, also can split phase output;

Tow kinds of output-manual mode and auto mode;

Rated capacity

18kVA*3

Stabilized current accuracy

Output current≤±0.5%

Output terminal

Wiring terminal

Protection

The electronic circuit rapidly detects over voltage, over current, over temperature, phase loss, etc., automatic tripping protection and alarm device, the voltage and the current is zero in non-test status.

Accuracy

Source effect

≤0.3% of rated value

Time drift

≤1% of rated value

Temp. drift

≤0.04% of rated value/°C

Load effect

≤1% of rated value (Output voltage change rate due to the output current change from zero to the rated value.)

Ripple voltage

≤1% of rated value+10mV

Others

Line regulation

0.1%

Load regulation

0.1%

Display and settings

Voltage meter display

True color LCD and digital display instrument (display accuracy: 0.1V display error: ≤0.5%±3 digit)

Current meter display

True color LCD and digital display instrument (5 digits display, display accuracy: 0.1A display error: ≤0.5%±3 digit)

Adjustment setting

Current (High precision potentiometer adjustment)

System

Efficiency

≥90%

Resistance

Withstand voltage insulation resistance AC1800V 1min, 20MW

Cooling device

Forced fan cooling

Noise

<60dB (1mm in front of the device)

CT accuracy

0.2%

Protection level

IP20

Working environment

Working mode

Long time temperature rise test

Temperature

-10°C~50°C

Humidity

0-90% (non-condensing)

Altitude

<1500m

Appearance

Structure

Integration

Dimension

Weight

Busbar

Output 2A per square

Rated capacity

54kVA

Phase number

3Φ4W

Input voltage

3-phase, 415V

Output voltage

3Φ4W, 0-430V

Frequency

50Hz

Motor power

ND-4.5RPM 100W

Insulation class

B class

Insulation resistance

5MW

Withstand voltage test

2000V/min

Waveform distortion

≤0.1%

Cooling mode

Natural cooling

Rated capacity

54kVA

Phase number

3 phase

Input voltage

3-phase, 0-430V

Output current

6V per phase

Frequency

3000A per phase

Insulation class

B class

Insulation resistance

5MW

Withstand voltage test

2000V/min

Waveform distortion

≤0.1%

Cooling mode

Forced air cooling

No.

Name & Specifications

Qty.

1

PLC control system

1

2

Electrical control system-contactor, control, etc.

1

3

Wiring column

4

4

LCD scree

1

5

18kVA/415V/0-420V Auto voltage regulator

3

6

18kVA Primary current transform (6/3000A)

3

7

3000A Current sensor

3

8

Voltage sensor

3

9

500A Protection level current sensor

3

10

Power supply

1

11

Over current meter, voltage meter, relay

3

12

Transducer (Data acquisition module)

3

13

System internal connecting copper bar and control cable

1set

14

Chassis

1

15

Temperature PLC module

1

16

Power factor compensating system

3

17

Over current & voltage protection (Relay, alarm)

1set

18

485 Communication module

3

19

High precision instrument test system

3
