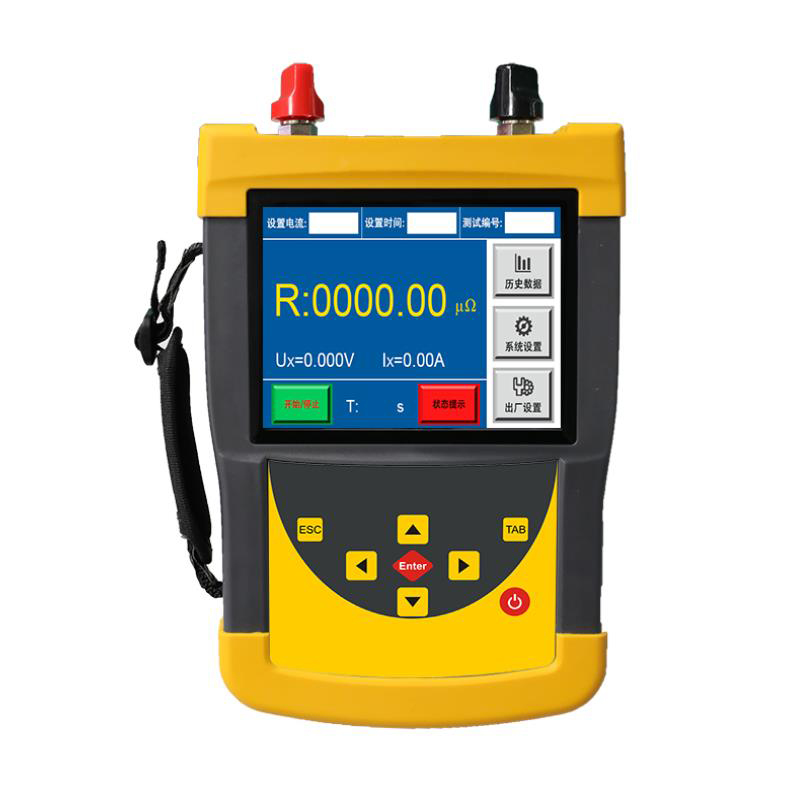

HPHL-100HS 100A Handheld Contact Resistance Tester
General Information
The product is mainly used for the contact resistance of switch contacts and other micro-ohm resistance measurement, and the test speed is fast and the accuracy is high. This handheld contact resistance tester is an innovative product that is compact, hand-held, battery powered and easy to carry.
Features
1. Maximum output current is 100A, two current levels are selectable
2. Built-in large capacity lithium battery, it can perform more than 600 tests on one charge.
3. The test is simple, the operation is convenient, and it can work continuously for more than 8 hours.
4. In the 100A test, the longest test time can be up to 60 seconds, which can meet various usage scenarios on site.
5. Wide range, high precision, up to 10mΩ at 100A.
6. With complete protection functions such as open circuit prompt and overheat protection.
7. The menu is simple and friendly, the display data is clear and easy to read, and it can be clearly displayed in the sun.
8. Automatically shut down after 5 minutes without operation.
9. With local storage and U disk storage, up to 99 groups can be stored.
10. Graphical interface, intuitive and concise, supports Chinese and English switching.
Specifications
|
Working power |
DC: built-in 12.6V/7.5Ah Lithium battery(with power adapter) |
|
Test current |
50A,100A |
|
Measurement range |
50A: 0~20mΩ |
|
Accuracy |
± (0.5%+1uΩ) |
|
Resolution |
0.1uΩ |
|
Display |
Large-screen color LCD display, can be clearly displayed in the sun. |
|
Test power supply |
Constant current and voltage limiting, about 2V |
|
Input voltage |
Max. 5V |
|
Test time |
Quickly, 10s, 20s, 30s, 60s optional |
|
Battery capacity |
Built-in 12.6V/7.5AH lithium battery |
|
Measurement time |
More than 600 times (rechargeable, fast measurement mode) |
|
Test wire |
Resistance less than 10mΩ |
|
Temperature |
Working: -10~40ºC |
|
Humidity |
≤80%RH, no condensation |
|
Dimension |
280*160*60mm |
|
Host weight |
1.8kg (with battery, without test cables) |
We can customized, welcome to consult with us!
