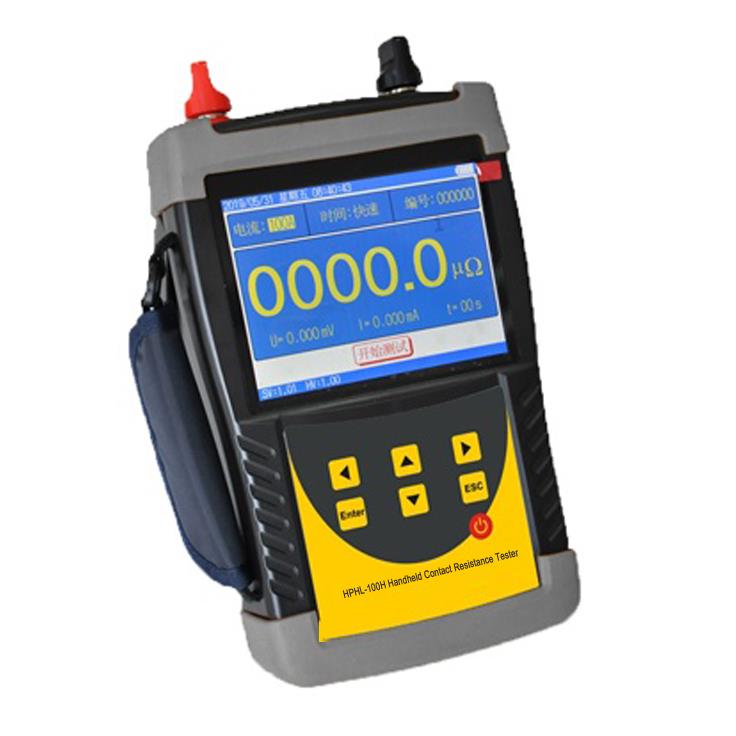

HPHL-100H 100A Handheld Switch Contacts Contact Resistance Tester
General Information
The product is mainly used for the contact resistance of switch contacts and other micro-ohmic resistance measurement, and the test speed is fast and the accuracy is high. This handheld contact resistance tester is an innovative product that is compact, hand-held, battery powered and easy to carry.
Features
l Lithium battery power supply, can be tested more than 600 times after a single charge, the test process is simple and convenient.u
l The output current is up to 100A, multiple currents are available, and the test range is wide.u
l The longest test time can reach 60 seconds at 100A , to meet various applications on site.u
l Wide range and high precision, up to 5mΩ at 100A.u
l It has perfect protection functions such as open circuit protection and overheat protection.u
l 5.6-inch large industrial-grade high-brightness color LCD screen, the display is still clearly visible under strong sunlight.u
l Optional external printer for easy data printing.u
l With local storage and USB storage for easy data storage.
Specifications
|
Test Current |
30A, 50A, 80A, 100A |
|
Measurement range |
30A: 0~20mΩ 50A: 0~10mΩ 80A: 0~8mΩ 100A : 0~5mΩ |
|
Accuracy |
± (Reading *0.5%+1uΩ) |
|
Resolution |
0.1uΩ |
|
Display digital |
4 1/2 digital |
|
Test power supply |
Constant current limit, about 2V |
|
Input voltage |
Max. 5V |
|
Test time |
Quickly , 10s-60s optional |
|
Battery capacity |
7.5AH power lithium battery |
|
Measurement time |
More than 600 times (rechargeable, fast measurement mode) |
|
Test Wire |
Resistance less than 10mΩ |
Accessories
Tester 1 set
Test Wire(black and red) 1 set
Charger 1 piece
Standard resistor 1 piece
User’s Manual 1 copy
Factory Test Report 1 copy
Packing List 1 copy
We can customized, welcome to consult with us!
