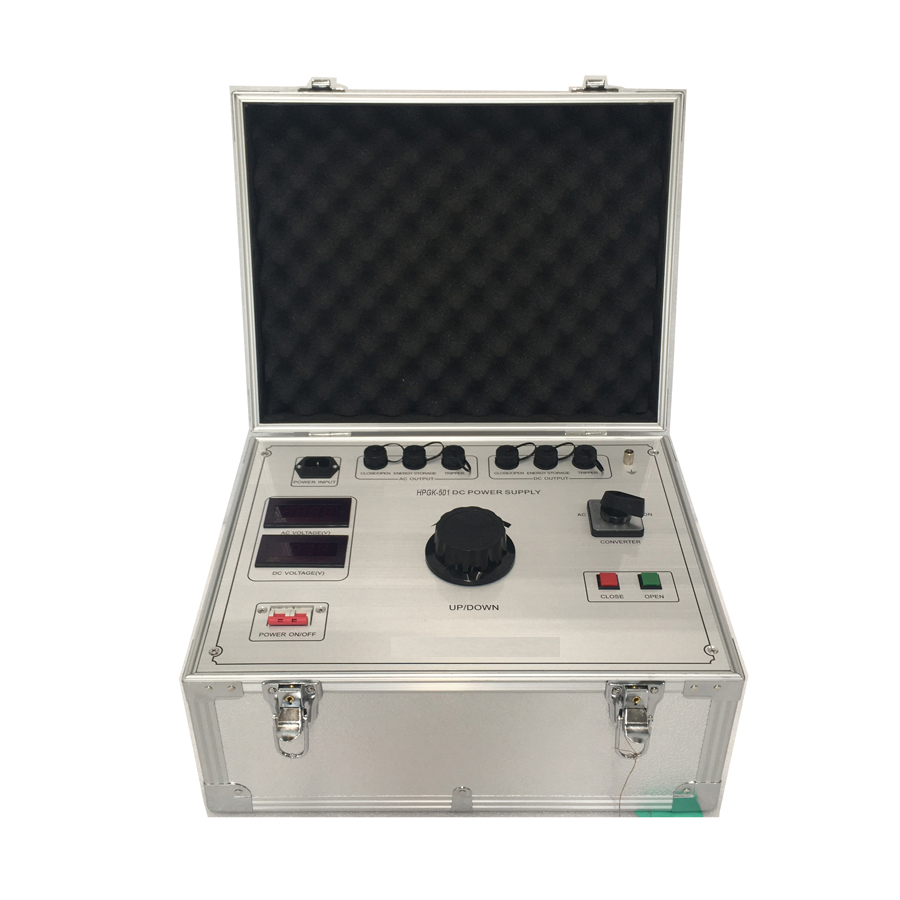

HPGK-501 HV Switches/Circuit Breakers Single Phase DC Power Supply
Application
HPGK-501 supplies power to circuit breakers or other HV switches.
Features
l Using contact regulators to output voltage and rectify by rectifier bridge.
l The output voltage is continuous adjusted.
l Small size, light weight.
Specifications
l Input Voltage: AC220V±10%, 50Hz, single phase
l Capacity: 3kVA
l Output Voltage: AC 0-260V
DC 0-360V
l Output Current: 10A (continuous), 2A(short time)
l Accuracy: 1.5% of the range
l Temperature: -10℃-45℃, humidity: <80%
l Dimension: 440*340*240 mm
l Weight: 18kg
Accessories
Test Box 1 set
Power cord 1 piece
Ground wire 1 piece
Test wire 6 pieces
Manual 1 piece
Factory test report 1copy
Packing list 1 copy
We can customized, welcome to consult with us!
