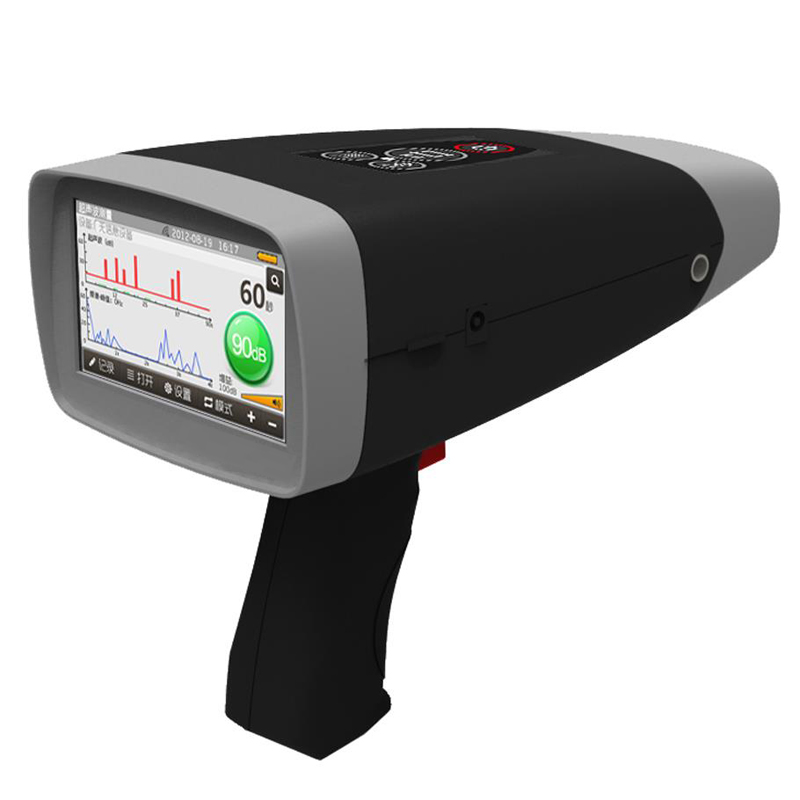

HPPD-3000C Portable Ultrasonic Partial Discharge Detector
General Information
HPPD-3000C Potable Ultrasonic Partial Discharge Detector uses advanced cloud computing and automatic modeling technology to achieve the partial discharge signal measurement, recording, transmission, storage, analysis and exchange, providing powerful technical support for on-site measurement of partial discharge. The measurement personnel collect the partial discharge information by using GDPD-3000C, and the cloud computing can be used to intelligently diagnose the insulation state of detection equipment in real time.
Specification
Hardware
l Processor: high performance intelligent processor.
l Screen: 4.3 Inch Touch Screen.
l Operation keys: PVE film keyboard.
l Interface:
Ø 3.5mm stereo headphone interface
Ø DC LV current charging interface
Ø USB 2.0 3G wireless network interface
Ø TF memory card interface
Ø External probe sensor interface
l TF memory card: 4G~32G.
l Headphones: Min. 8Ω.
l External probe: Ultrasonic probe extension line 250mm.
l Enclosures material: ABS+PC Plastique.
l Weight: 0.7kg.
l Dimension: 241*126*189mm.
Operating Environment
l Operation temperature: 0~55℃.
l Operation humidity: 0~90% RH, non-condensing.
l IP rates: 54.
Ultrasonic Parameters
l Measuring range: -20dBµV~65dBµV.
l Resolution: 1dB.
l Accuracy: ±1dB.
l Transducer Sensitivity: -65dB.
l Transducer Frequency: 20-100kHz.
l Transducer Diameter: 16mm.
l Test source: 25dB~35dB.
TEV Parameters
l Sensor: Capacitive.
l Measuring range: 0dBµV~60dBµV.
l Resolution: 1dB.
l Accuracy: ±1dB.
l Max number of Pulses/Cycle: 655.
l Min number for pulses: 5Hz.
Power Supplies
l Internal Batteries: 3.7V, 5.6Ah rechargeable Lithium-ion.
l Typical Operating Time: approx. 6 hours.
l Battery Conservation: Auto shutdown of inactivity, 10 mins.
l Rated voltage of charger: 90-264V AC.
l Charging voltage/current: 5V/2.4A.
l Charging Time: approx. 9 hours.
Packing list
Main unit 1 pc
External ultrasonic probe 1 pc
Monitor headphones 1 pc
Function detector 1 pc
Charger 1 pc
Memory card(inside the main unit) 1 pc
Card reader 1 pc
Touch pen 1 pc
Parabolic sensor(optional) 1 pc
User’s guide 1 pc
Factory test report 1 pc
We can customized, welcome to consult with us!
Company Profile
HONOPOWER DEVELOPMENT Co., Ltd. is a professional manufacturer specialized in electrical safety testing equipment, especially high voltage testing equipment.
We had researched and produced and sell test equipment for over ten years，our products have been sold well nationwide and worldwide.
Our test equipment can test for various kinds of products, such as SF6 Gas, GIS Systems,Transformers,Generators, Circuit Breakers, Relays, Surge Arresters, Insulators, Cables, Casings and CT/ PTs, etc.
