HPPD-505 Portable Partial Discharge Detector
Product Description
HPPD-505 is a portable multi-functional PD online detector, which is suitable for testing transformers, GIS, switch cabinet, power cables, lightning arrester and CT/PTs.
The system includes detector, software, HFCT(high frequency current transformer), calibration pulse generator, 40kHz ultrasonic sensor, 150kHz ultrasonic sensor, UHF sensors, TEV sensors, Acoustoelectric sensors and some connection cables.
It uses pulse current, ultrasonic and UHF technology, to detect and analyze HF electromagnetic signals and ultrasonic signals of internal transformers and GIS, so that to detect and evaluate the running status of GIS, transformers.
Features

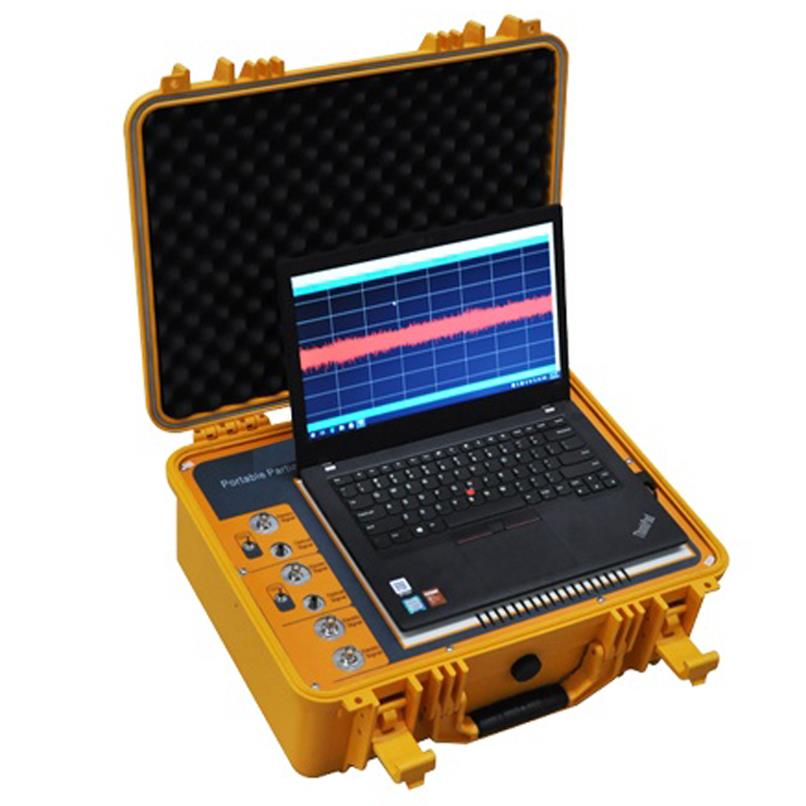

The main detector is portable design, robust and reliable.
Using 14inch laptop, built-in 20Ah Li-battery. Working up to 4hours without external power supply.
Strong anti-interference ability. Using digital filtering technology, effectively eliminate field interference.
Multichannel data collection. Comprehensive analysis of electromagnetic wave and ultrasonic wave generated by partial discharge.
Easy wiring. BNC port for sensors and detector.
Strong software functions. With PD measurement and analysis, Measurement and analysis of PD repeat discharge times “n”, anti-fixed interference, anti-dynamic interference, display mode of ellipse, straight line and sine wave can be selected.
The discharge result is accorded with IEC60720 standard. The display value unit is pc and mV.
Specifications
Measurement channel: 2-4pcs independent measurement channel
Sampling rate: Max. 100MHz of each channel.
Sensitivity: 1pc.
Measurement range: 1pc-10000pc.
Dynamic range: >80dB.
Bandwidth 3dB of measurement frequency band: 10kHz-30MHz.
Digital filter: any setting within 50kHz-30MHz.
Power Supply: AC 220V±10%, 50Hz, power <50W.
Environment temperature: -20℃-60℃
Relative humidity: ≤ 95%.
Altitude: ≤3000m.
Sensor specifications
1. Acoustic electric sensors
Measurement mode: Non-contact type
Transmission mode: optic fiber
Measurement signal: Ultrasonic signal, electric signal
2. HFCT (High Frequency Current Transformer)
Detected frequency band: 50kHz-20MHz
Transmission mode of signal: 50Ω coaxial cable
Sensitivity: 10pc
3. Calibration pulse generator
Voltage: 0.1V(10pc), 0.5V(50pc), 1.0V(100pc), 5.0V(500pc)
Output frequency: 50Hz-1kHz(step 50)
Injected capacitance: 100pF
Rising time: <30ns
Attenuation time: ≥ 100μs
Output impedance: <100Ω
Error of calibration charge: <±15%
Size and weight: 135*80*25mm, about 275g
4. 40kHz Contact Ultrasonic Sensor
Frequency: center frequency 40kHz
Sensitivity: >65dB
Shell material: stainless steel
5. 150kHz Contact Ultrasonic Sensor
Frequency: center frequency 150kHz
Transmission mode of signal: 50Ω coaxial cable
Sensitivity: 10pc (it is detected within 1meter inside 5mm thick steel oil tank.)
6. TEV sensor
Signal collection: Capacitor coupling.
Frequency range: 3-100MHz
Measurement range: -20-60dB/mV
7. UHF sensor
Frequency: 300MHz-600MHz
1000MHz-1500MHz
Sensitivity: -75dBm-35dBm
Power supply: 8V-15V, current 120mA
We can customized, welcome to consult with us!
