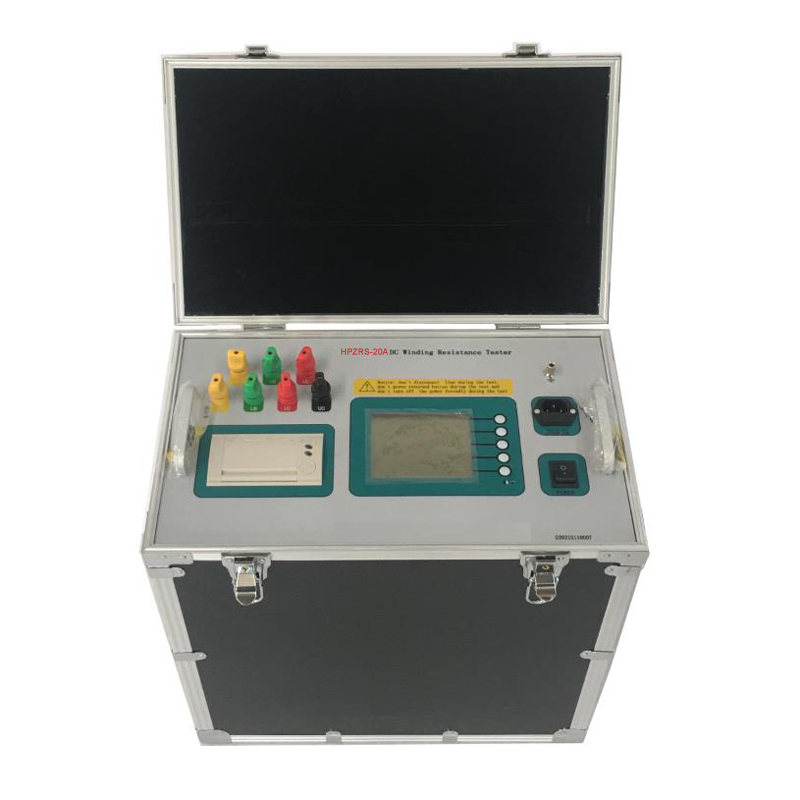

HPZRS-20A Transformer DC Winding Resistance Tester
General Introduction
HPZRS series Winding DC resistance tester is optimal designed for measuring three phase winding DC resistance of big capacity transformer. It can test three phase winding DC resistances at the same time.
Features
1. For on-load variable transformer, no need to discharge, just adjust tap switch directly.
2. The measurement time is 1/3 of tradition single phase measurement, that working time and labor intensity is shorten.
3. Big screen LCD display, clear and visual, easy operation.
4. Built-in panel printer and big capacity memory, easy to get printing result and convenient to storage data.
5. Stable data, fast testing and good repeatability, suitable for transformer DC resistance on-site measurement.
Specifications
|
Current |
Single phase: 1A 5A 10A 20A 40A |
|
Range |
Single phase: 1A 10mΩ -20Ω 5A 1mΩ -4Ω |
|
accuracy |
± 0.2%(full range) |
|
Max. resolution |
0.1μ Ω |
|
Data saving capacity |
150 group |
|
Power supply |
AC 220V± 22V, 50Hz± 2 Hz |
|
Working environment |
Environment temperature: 0-40degree Relative humidity: ≤ 80% |
We can customized, welcome to consult with us!
Company Profile
HONOPOWER DEVELOPMENT Co., Ltd. is a professional manufacturer specialized in electrical safety testing equipment, especially high voltage testing equipment.
We had researched and produced and sell test equipment for over ten years，our products have been sold well nationwide and worldwide.
Our test equipment can test for various kinds of products, such as SF6 Gas, GIS Systems,Transformers,Generators, Circuit Breakers, Relays, Surge Arresters, Insulators, Cables, Casings and CT/ PTs, etc.
