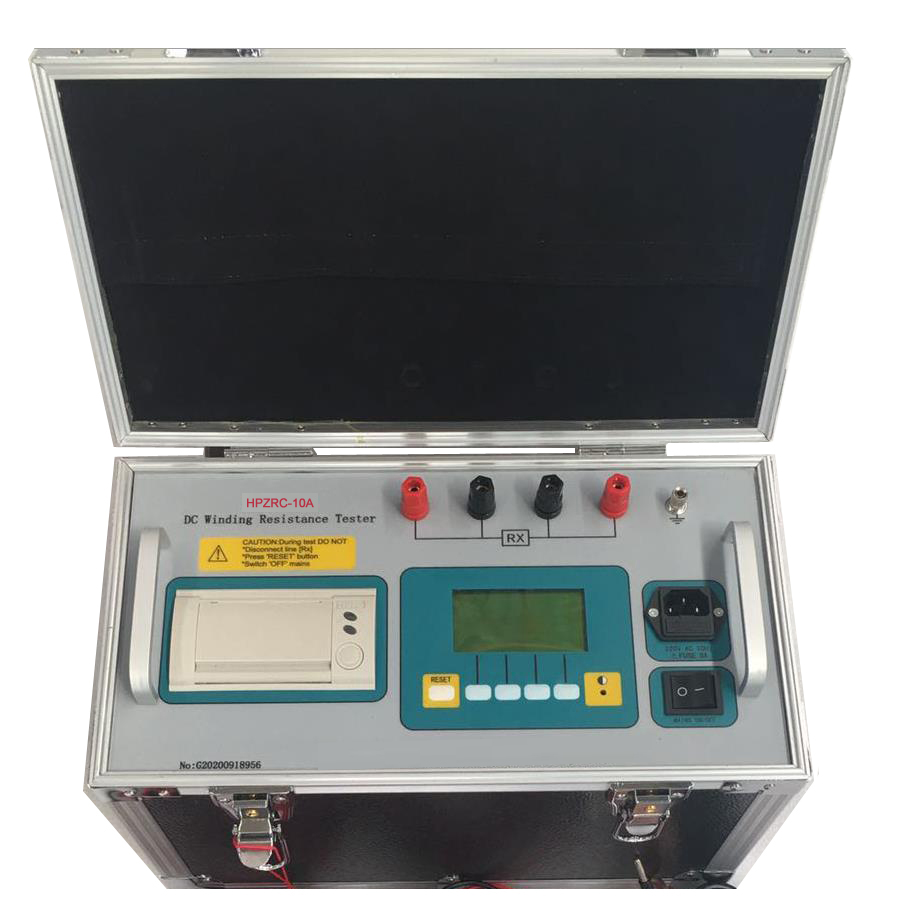

HPZRC-10A Transformer DC Winding Resistance Tester
I. General Information
HPZRC series DC Winding Resistance Tester is designed to measure DC resistance of inductive devices, such as transformers and power inductors. It has features of fast measurement, small size and high accuracy, which make it an ideal equipment for measuring DC resistance of transformer winding and high inductive equipments.
II. Features
l LCD screen and built-in printer. Light weight, small volume.
l Four leads measurement to ensure measuring accuracy.
l Program-controlled current source to increase measuring speed.
l Automatic discharge and discharge indication, to avoid error and ensure safety.
III. Specifications
1.Test current: 1mA, 10mA, 1A, 5A, 10A
2. Measuring range:1mA:10Ω~20kΩ
10mA:1Ω~2kΩ
1A:10mΩ~20Ω
5A:1mΩ~4Ω
10A: 1mΩ~2Ω
3. Accuracy: ±0.2%*(full range)±2 digit
4. Data saving capacity: 255 groups
5. Display: LCD (4 1/2 digit)
6. Max.resolution: 0.1μΩ
7. Power supply: AC 220V±22V，50Hz±2 Hz (fuse is 5A)
8. Max.consumption: 300W, when test current is 10A
9. Working conditions: Temperature: 0-40°C
Relative humidity: ≤80%
10. Dimensions: 200mm*400mm*280mm
11. Weight: 10kg
Accessories
Main Unit 1 pc
Power Cord 1 pc
Test Lead 2 pcs
Fuse 2 pcs
Print Paper 2 rolls
Ground Cable 1 pc
User’s Guide 1 copy
Test Report 1 copy
