HPZJ-10S 10kV Turn to Turn Surge Withstand Tester for Motor/Transformer
HPZJ-10S is used to test turn-to-turn insulation strength of single phase motor, 3-phase motor, Micro motor, Special motor, electrical motor, transformer(including switching mode power supply transformer), relay and winding electrical equipment.
It can detect below faults:
l Turn-to-turn Insulation breakdown
l Corona discharge
l Winding connection mistake
l Winding disconnection
l Turn-to-turn difference
l Short-circuit between interphase,winding phase or iron core
Specifications
l Peak voltage: 500-10kV continuous adjustment
l Peak error: ≤ 5%（1kV-5kV）
l Waveform rising time: 0.5μS or 0.2μS
l Power supply: 220V±10%,50HZ
l Power consumption: ≤ 800 W
l Dimension: 900*460*550mm
l Weight: about 70kg

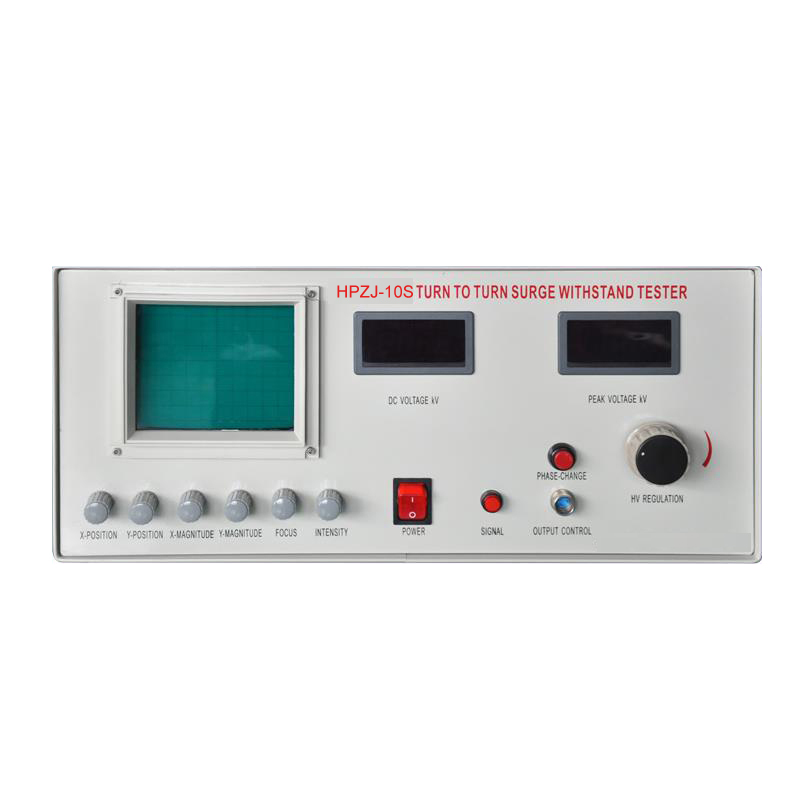

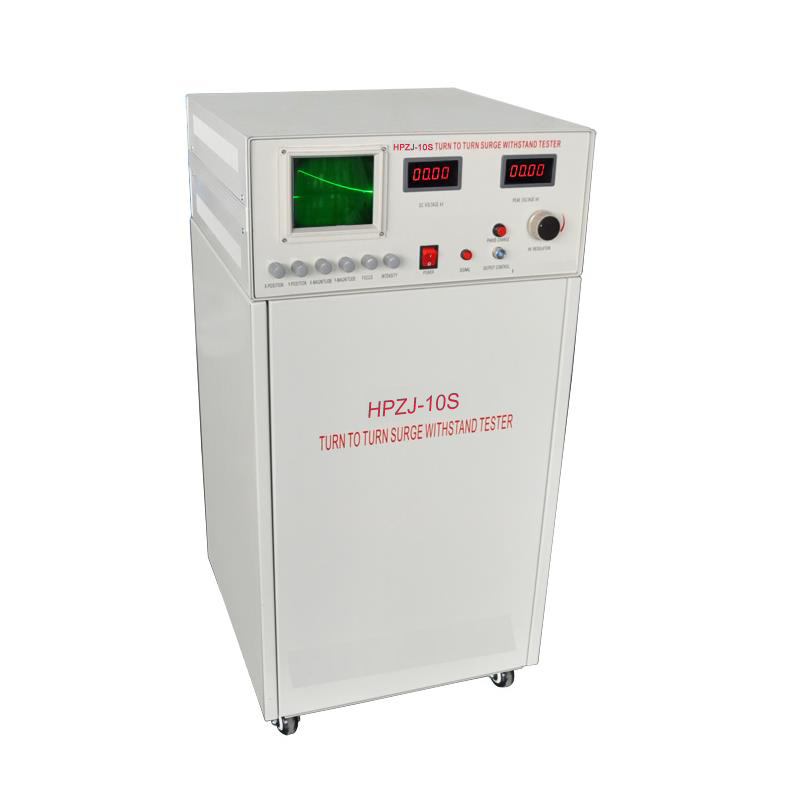

HPZJ-10S includes two parts. Upper part includes control unit and regulator. The below part is HV major loop. The two parts are connected by 14core socket.
We can customized, welcome to consult with us!
If you want more information, feel free to contact us.
