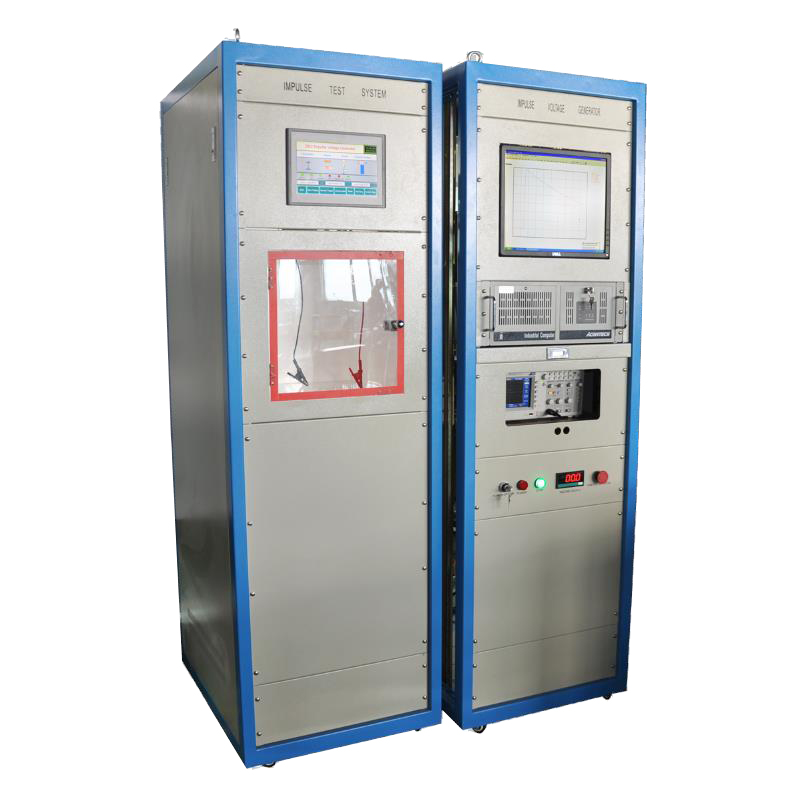

HPCY-20 20kV Impulse Voltage Generator/Impulse Voltage Test System/Surge Tester
I. Application
The impulse voltage generator is mainly used to the field of impulse voltage tests by lightning impulse voltage full wave, lightning impulse voltage chipped wave and operate impulse voltage wave for such test products as electrical instrument.
II. Features
Complete equipment and wide voltage levels in the whole set of device.
Small electric inductance in the return circuit of the impulse voltage generator,A band-stop filtering is adopted so that a standard impulse wave is still generated even under a large capacity load, and large load capacity.
Large in voltage utilization coefficient.
Convenient in wave adjustment, simple in operation, excellent in synchronization performance and reliable in motion.
An automatic control technique is adopted in the constant-current charge,which is high automation and strong anti-interference capacity.
A digital measurement and analysis system for the impulse test date are adopted,which increase the technical level and the efficiency of the impulse voltage tests.
III. Main Specifications
|
Standard |
Impulse |
Deferred |
Impulse |
Deferred |
Deferred |
Weight(kg) |
|
±1600 |
0.0625 |
0.5 |
80 |
±200 |
8 |
7353 |
|
0.09375 |
0.75 |
120 |
8 |
7513 |
||
|
0.125 |
1 |
160 |
8 |
8873 |
||
|
±1800 |
0.0556 |
0.5 |
90 |
9 |
7838 |
|
|
0.0833 |
0.75 |
135 |
9 |
8018 |
||
|
0.1111 |
1 |
180 |
±200 |
9 |
9548 |
|
|
±2200 |
0.0456 |
0.5 |
110 |
±200 |
11 |
8810 |
|
0.0682 |
0.75 |
165 |
±200 |
11 |
9030 |
|
|
0.09091 |
1 |
220 |
±200 |
11 |
10900 |
|
|
±2400 |
0.0417 |
0.5 |
120 |
±200 |
12 |
9294 |
|
0.0625 |
0.75 |
180 |
±200 |
12 |
9534 |
|
|
0.0833 |
1 |
240 |
±200 |
12 |
11574 |
|
|
±2800 |
0.0357 |
0.5 |
140 |
±200 |
14 |
10266 |
|
0.0536 |
0.75 |
210 |
±200 |
14 |
10546 |
|
|
0.0174 |
1 |
280 |
±200 |
14 |
12925 |
|
|
±3000 |
0.0333 |
0.5 |
150 |
±200 |
15 |
10750 |
|
0.05 |
0.75 |
225 |
±200 |
15 |
11050 |
|
|
0.067 |
1 |
300 |
±200 |
15 |
13600 |
|
|
±3200 |
0.03125 |
0.5 |
160 |
±200 |
16 |
13760 |
|
0.04687 |
0.75 |
240 |
±200 |
16 |
14720 |
|
|
0.0625 |
1 |
320 |
±200 |
16 |
15680 |
|
|
±3600 |
0.0278 |
0.5 |
180 |
±200 |
18 |
15480 |
|
0.04167 |
0.75 |
270 |
±200 |
18 |
16560 |
|
|
0.0556 |
1 |
380 |
±200 |
18 |
17640 |
|
|
±4000 |
0.025 |
0.5 |
200 |
±200 |
20 |
17200 |
|
0.0375 |
0.75 |
300 |
±200 |
20 |
18400 |
|
|
0.05 |
1 |
400 |
±200 |
20 |
19600 |
|
|
±4200 |
0.0238 |
0.5 |
210 |
±200 |
21 |
18060 |
|
0.0357 |
0.75 |
315 |
±200 |
21 |
19320 |
|
|
0.0476 |
1 |
420 |
±200 |
21 |
20580 |
|
|
±4800 |
0.0208 |
0.5 |
240 |
±200 |
24 |
21840 |
|
0.03125 |
0.75 |
380 |
±200 |
24 |
22020 |
|
|
0.0471 |
1 |
480 |
±200 |
24 |
23500 |

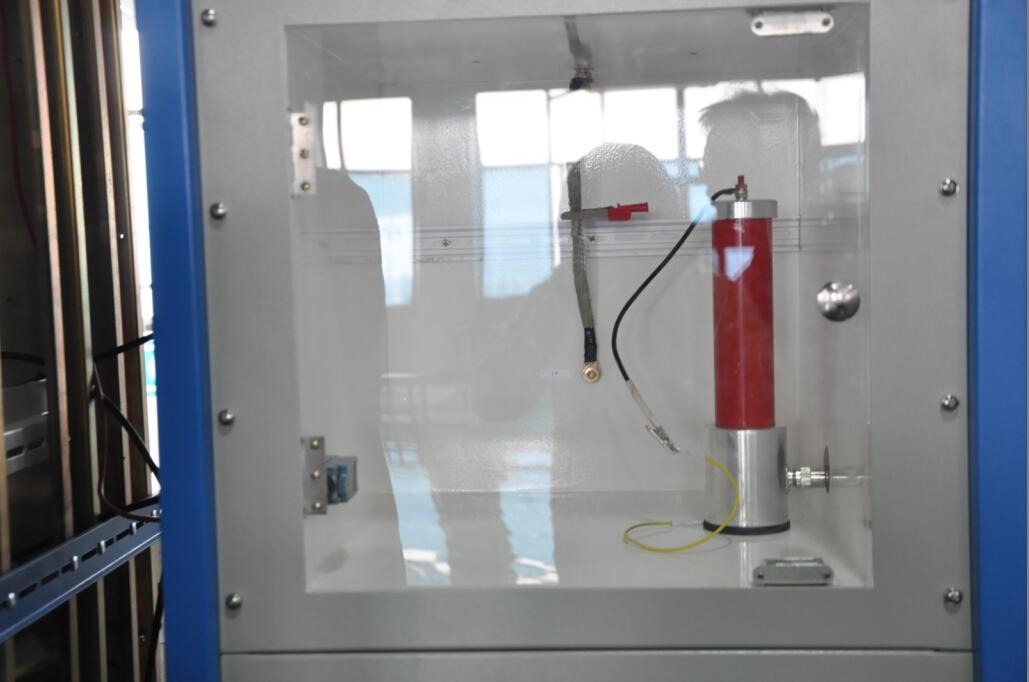

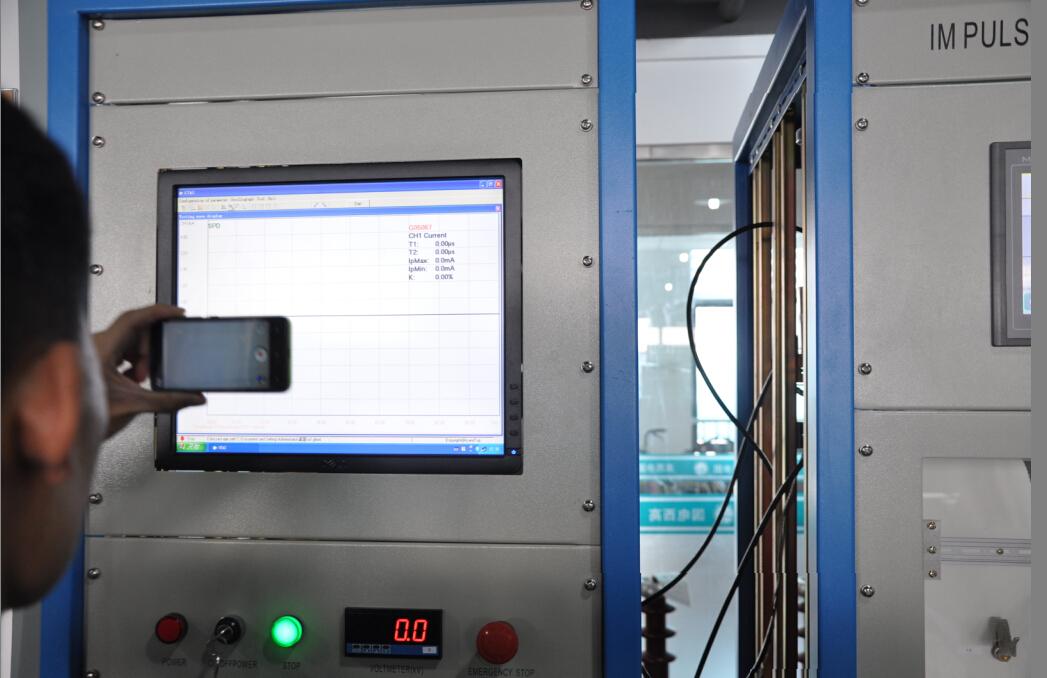

IV.Product Details
We can customized, welcome to consult with us!
If you want more information, feel free to contact us.
Company Profile
HONOPOWER DEVELOPMENT Co., Ltd. is a professional manufacturer specialized in electrical safety testing equipment, especially high voltage testing equipment.
We had researched and produced and sell test equipment for over ten years，our products have been sold well nationwide and worldwide.
Our test equipment can test for various kinds of products, such as SF6 Gas, GIS Systems,Transformers,Generators, Circuit Breakers, Relays, Surge Arresters, Insulators, Cables, Casings and CT/ PTs, etc.
