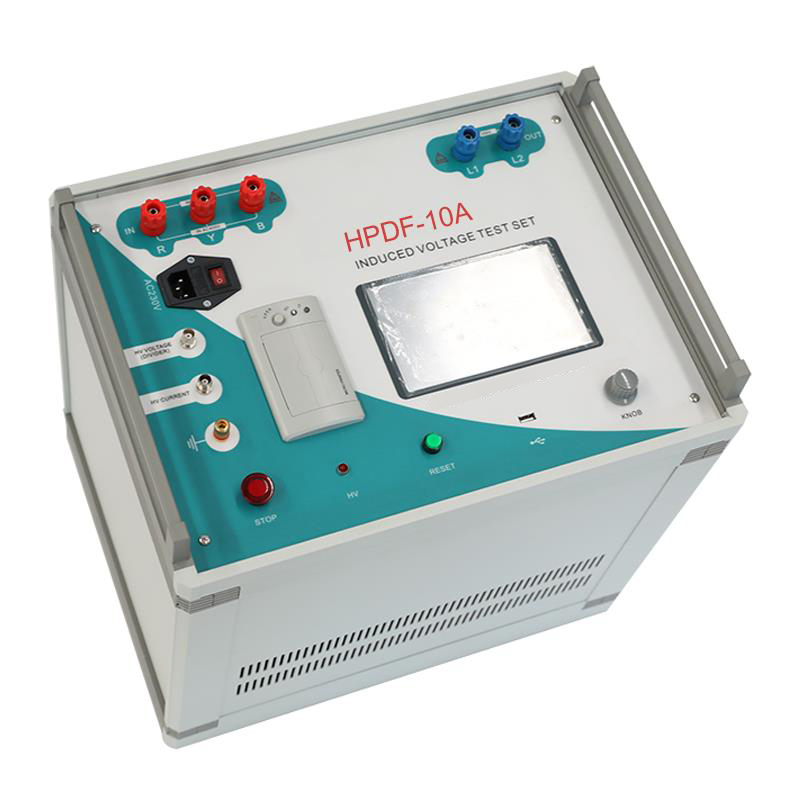

HPDF-10A Multiple Frequency Induced-Voltage Test Set
HPDF-10A is used for checking the vertical insulation between turns, layers, sections, and phases of the transformer winding. It is small and light, with stable performance, and easy to operate.
Features
l Advanced electronic technology, with Variable frequency regulator.
l Digitally control of parameter presetting, protection setting, frequency choosing and voltage regulating.
l With many protection functions, such as, emergency stop, hardware protection, output over-current protection, temperature protection, over-voltage protection, HV voltage/HV current sudden increase or decrease protection.
l Once an abnormality is detected during the test, the instrument can disconnect the output within one output cycle time.
l Realtime record test data and save. After testing, the data can be printed.
l Realtime adjustment for step length. 1V, 2V, 5V and 10V are optional.
Technical Specifications
l Capacity: 10kVA
l Input voltage: Working power supply AC220V±10%
Main power supply AC220 or 380V±10%.
l Output voltage: 0-350V (0-500V after adding boosting transformer.)
l Output frequency: 50, 100, 150, 200Hz adjustable.
l Waveform distortion rate: <3%
Accessories
|
Main Unit |
1 set |
|
Voltage test lead |
1 piece |
|
Current test lead |
1 piece |
|
Power cable |
1 piece |
|
Output cable |
2 pcs |
|
Fuse |
4 pcs |
|
Print paper |
1 roll |
|
Ground cable |
1 piece |
|
User’s guide |
1 copy |
|
Factory test report |
1 copy |
We can customized, welcome to consult with us!
If you want more information, feel free to contact us.
