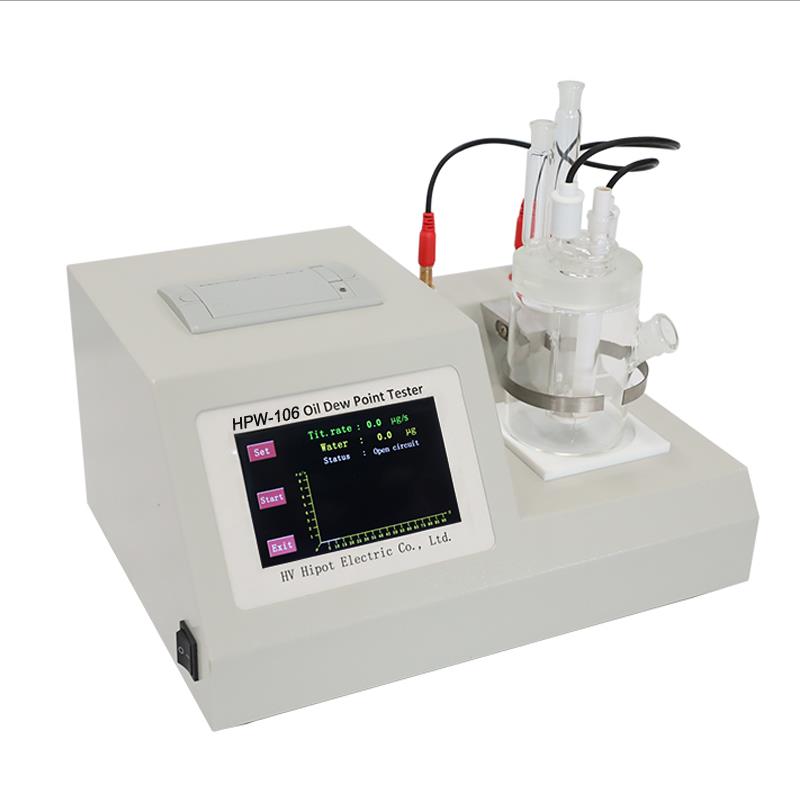

HPW-106 Transformer Oil Dew Point Tester
I. General Information
HPW-106 Oil Dew Point Tester uses Coulometric Karl Fischer technology to measure precisely trace moisture the measured sample contains.The technology is widely used for accuracy and cheap test cost. The model HPW-106 measure precisely trace moisture on liquid, solid and gas samples according to the technology. It’s used in electricity, petroleum, chemicals, foods and so on.
This instrument uses powerful new generation processing units and brand new peripheral circuit and that the superior low power consumption make it capable to use small size storage battery and portable. Judging the electrolysis endpoint is based on testing electrode signal and the stability and accuracy are the vital factors of determination precision.
II. Features
l 5-inch high-definition color touch screen, the display is clear and easy to operate.
l Two methods of electrolyte blank current compensation and balance point drift compensation to revise testing results.
l Functions of detecting measuring electrode open circuit fault and short circuit fault.
l Adopts thermal micro printer, printing is convenient and fast.
l 5 calculation formulas are built in the instrument, and the calculation unit of test results (mg / L, ppm%) can be selected as required.
l Automatically save history records with time tab, maximum to 500 records.
l Blank current microprocessor automatically controls compensation, and reagents can quickly reach equilibrium.
III. Specifications
l Measurement Range: 0ug-100mg;
l Measurement accuracy:
Electrolysis water Accuracy
3ug-1000ug ≤±2ug
>1000ug ≤±02% (the above parameters do not include injection error)
l Resolution: 0.1ug;
l Electrolyzing Current: 0-400mA;
l Max power consumption: 20W;
l Power Input: AC230V±20%, 50Hz±10%;
l Operating Ambient temperature: 5～40℃;
l Operating Ambient humidity: ≤85%
l Dimension: 330×240×160mm
l Net weight: 6kg.
IV.Packing List
No.
Name
Qty.
Unit
1
HPW-106 Host
1
piece
2
Electrolytic cell bottle
1
piece
3
Electrolytic electrode
1
piece
4
Measuring electrode
1
piece
5
Electrolytic cell injection plug
1
piece
6
Large glass grinding plug
1
piece
7
Small glass grinding plug (notch)
1
piece
8
Small glass grinding plug
1
piece
9
Stirring rod
2
pcs
10
Silica gel particles
1
bag
11
Silica gel pad
9
pcs
12
0.5μl micro sampler
1
piece
13
50μl micro sampler
1
piece
14
1ml micro sampler
1
piece
15
Straight dry tube
1
piece
16
Power cord
1
piece
17
Vacuum grease
1
piece
18
Electrolyte
1
Bottle
19
Print paper
1
roll
20
User’s guide
1
piece
21
Test report
1
piece
If you want more information, feel free to contact us.
