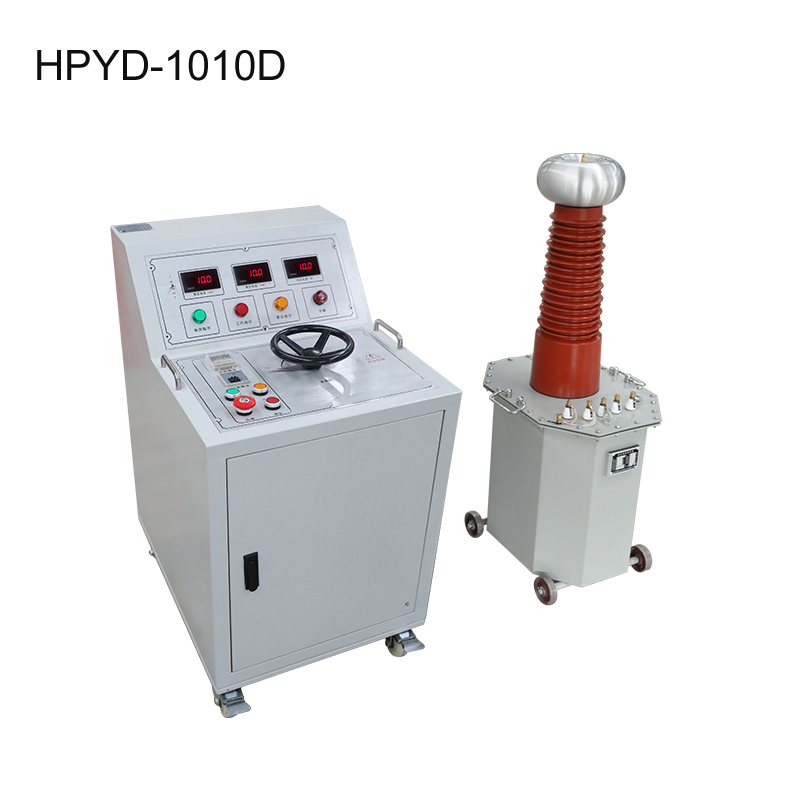

HPYD-1010D AC Hipot Test Set AC 10kVA/100kV
I. General information
HPYD series AC hipot test set is composed of manual control unit and AC dry testing transformer(HV unit) which output AC voltage smoothly. Meanwhile, it has many monitoring and protection functions.
II. Features
● Digital display meters mounted on the panel.
● Monitoring HV side voltage, HV side current, LV side current and indicator of zero, power, start, timing.
● Over-current protection, zero-starting protection, sound and light alarm.
● With new type time relay, time range is more wider (1S ~ 99H).
● Using the latest current relay, more accurate and reliable.
● Light weight, small size, easy to move.
III. Specifications
l Control unit specifications
● Power: AC415V, 50Hz
● Capacity: 10kVA
● Output voltage: AC 0-400V
● Rated output current: 25A
● Rated current rectified range:0-25A
● HV voltmeter range: 0-100kV
Accuracy: 1.5% of the reading±1digit(F.S)
● HV ammeter range: 0-100mA
Accuracy: 1.5% of the reading±1 digit(F.S)
● LV ammeter range: 0-25A
Accuracy: 2.0% of the reading±1 digit(F.S)
● Timing range:1s-99h
● Weight: 39.5 kg
● Dimension: 460mm (L)*360mm (W)*515mm (H)
B. Testing transformer (HV unit) specifications
● Input voltage: 0-400V
● Input current: AC 0-25A
● Output voltage: AC 0-100kV
● Output current: AC 100mA
● Capacity: 10kVA
● HV side/LV side turns ratio: 250:1
● Measuring voltage: AC 0-100V
Accuracy: 1.0% of the reading±1 digit(F.S)
● No-load current: <15%
● Impedance voltage: ≤20%
● Weight: 86kg
● Dimension: 380mm(L)*500mm(W)*940mm(H)
C. Working conditions
● Working place: No gas, steam, chemical dust and explosive and corrosive medium which will influence insulation.
● Environment temperature: -20--50℃
● Environment humidity: ≤85% RH (no condensing)
Accessories
Control Unit 1 piece
Oil type testing transformer(HV unit) 1 piece
Power cord 1 piece
Metering cable 1 piece
Output cable 1 piece
HV cable 1 piece
Ground cable 1 piece
User's guide 1 piece
Factory test report 1 piece
