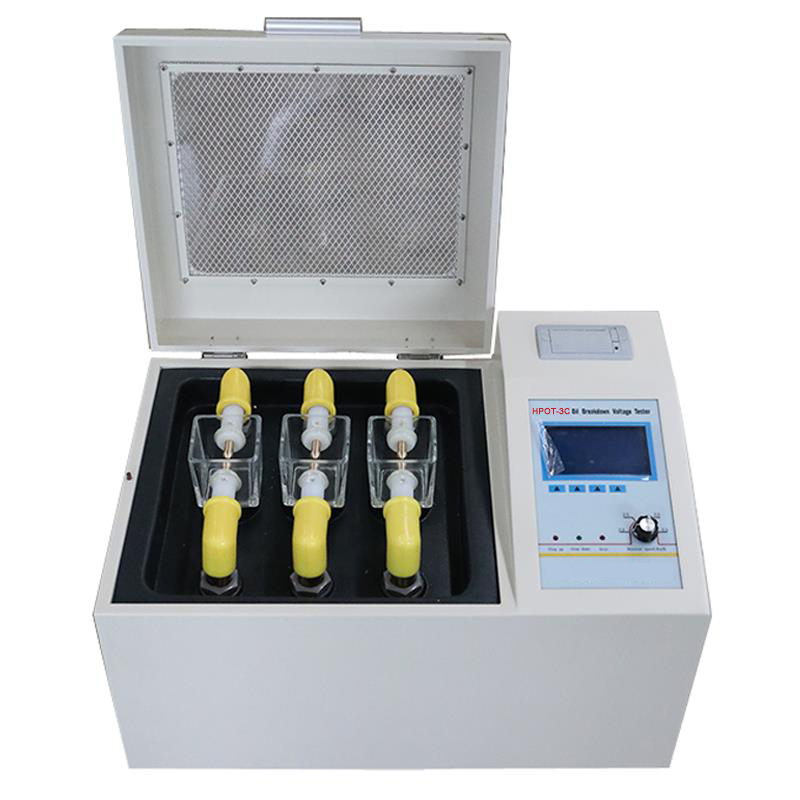

HPOT-3C 80kV 3 Cups Transformer Insulation Oil Dielectric Strength BDV Tester Tester
HPOT-3C 80kV 3 Cups Insulation Oil Breakdown Voltage Tester is fully digital industrial instrument with microcomputer control. It has the features of high accuracy and strong anti-interference ability.
Features
l LCD screen display.
l Single-chip control, easy to control.
l Wide range watchdog circuit to avoid system halted.
l Unique HV sampling design to make the test data entering into A/D converter directly, to avoid error caused by analog circuit, which will make measurement more accurate.
l Automatic completing all test procedures.
l 1-6 times breakdown voltage value and times will be saved automatically. It will print test results.
l With over-voltage, over-current and short circuit protection.
l Portable design, easy to move.
Specifications
|
Output voltage |
0-80kV optional |
|
Power distortion rate |
<1% |
|
Voltage increasing speed |
2.0kV/s, 2.5kV/s, 3.0kV/s, 3.5kV/s optional ,Error 0.2kV/s. |
|
Voltage accuracy |
2%* reading + 2 digital |
|
Display |
Large LCD screen |
|
Electrode gap |
standard 2.5mm |
|
Test time |
6 times(1-6 times optional) |
|
Static time |
5 min (1-9 min optional) |
|
Booster Capacity |
1.5kVA |
|
Power input |
AC220V± 10%, 50Hz±1Hz |
|
Power |
200W |
|
Working temperature |
0-40℃ |
|
Humidity |
<85%RH |
|
Dimension |
670mm*420mm*410mm |
|
Weight |
38kg |
Accessories
GDOT-3C Tester 1pc
Oil cup 1pc
Power cord 1pc
Ground cable 1pc
Spare fuse 2pcs
Stirring nut 2pcs
Standard 2.5mm 1pc
Tweezer 1pc
Print paper 1rolls
User's guide 1pc
Factory test report 1pc
If you want more information, feel free to contact us.
