HPBT-8610P Hand-Held Battery Impedance/Resistance Tester
General Information
Regular maintenance and test is a “must-have” procedure for standby batteries. The excellent performance of GDBT-8610P for testing cell resistance and voltage will help you eliminate the weak batteries and ensure their performance. It is a new generation of battery tester with touch screen and strictly designed to evaluate and maintain all stationary batteries including uninterruptible power system.
Main Function
· Battery measurement: Internal resistance measurement and performance evaluation of single battery and group battery.
· Voltage measurement: Voltage measurement function
· Data management: Storage , playback , review, transfer to U disk function of the measurement data
· System management: Included metering, time setting, language selection, system update and software version function.
Specifications
|
Measurement range |
Inner resistance: 0.0mΩ--100mΩ Battery voltage: 0-16V Main unit withstand voltage: 0.0V-150V |
|
Min. measurement resolution |
Inner resistance: 0.01mΩ Voltage: 1mV |
|
Measurement accuracy |
Inner resistance:±2.0%reading ±6dgt Voltage:±0.2%reading ±6dgt |
|
Display |
240*320 24 bit 3.5 inch LCD touch screen |
|
Dimension |
190mm*100mm*30 mm |
|
Weight |
0.5kg |
|
Memory |
16M Flash |
|
Working power |
Rechargeable lithium battery, working for 5~6 hours for full charge |
|
External power |
AC 100-240V /DC 8.4V -1A power adapter /charger |
|
Communicate port |
USB interface (support U disk) |

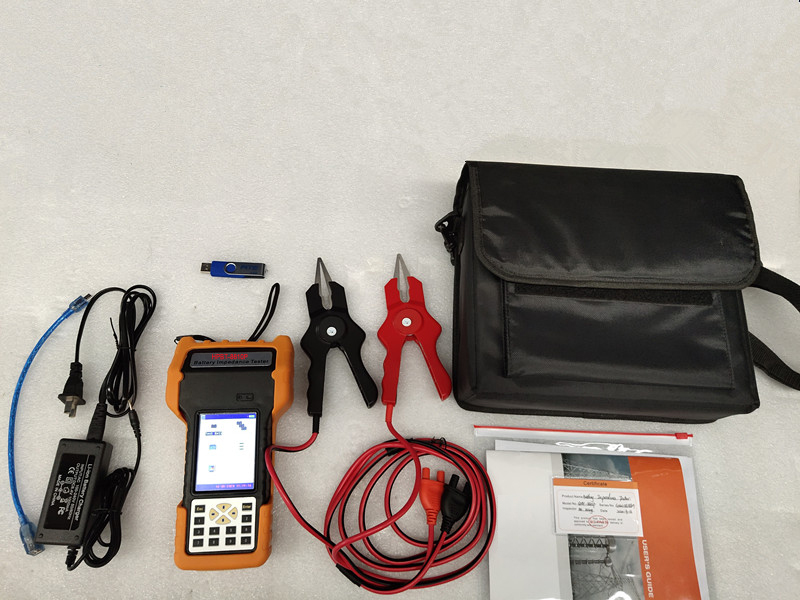

Accessories
HPBT-8610P Tester
Test Wire
Charger
Lithium battery
Data use disk
Data dedicated U disk
USB adapter cable
Instrument bag
If you want more information, feel free to contact us.
Company Profile
HONOPOWER DEVELOPMENT Co., Ltd. is a professional manufacturer specialized in electrical safety testing equipment, especially high voltage testing equipment.
We had researched and produced and sell test equipment for over ten years，our products have been sold well nationwide and worldwide.
Our test equipment can test for various kinds of products, such as SF6 Gas, GIS Systems,Transformers,Generators, Circuit Breakers, Relays, Surge Arresters, Insulators, Cables, Casings and CT/ PTs, etc.
