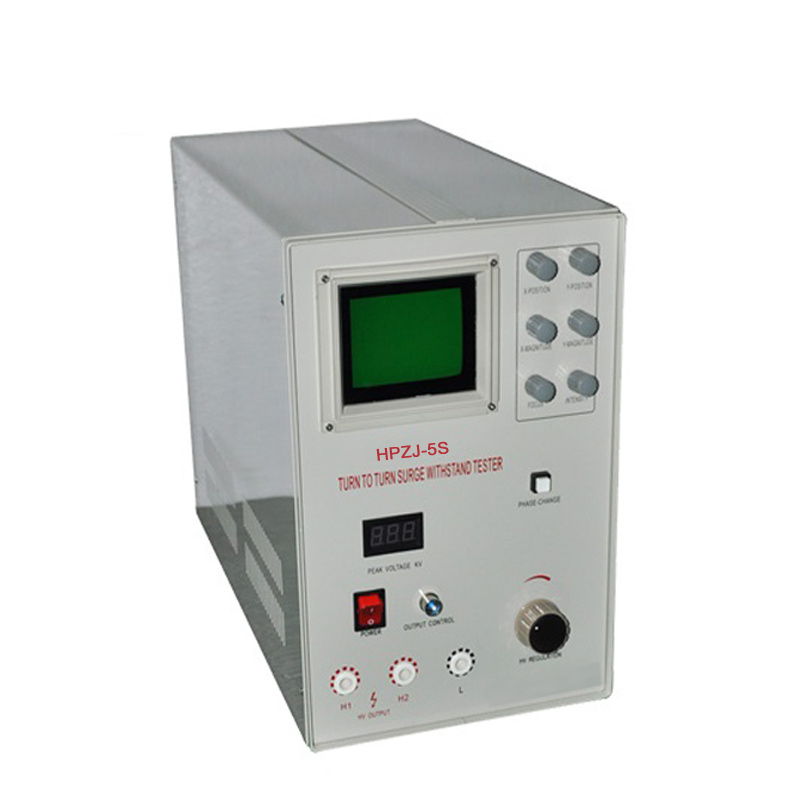

HPZJ-5S Motor&Transformer Turn to Turn Surge Withstand Tester
I.General Information
HPZJ-5S is used to test turn-to-turn insulation strength of single phase motor, 3-phase motor, Micro motor, Special motor, electrical motor, transformer (including switching mode power supply transformer), relay and winding electrical equipment.
It can detect below faults:
l Turn-to-turn Insulation breakdown
l Corona discharge
l Winding connection mistake
l Winding disconnection
l Turn-to-turn difference
l Short-circuit between interphase,winding phase or iron core
II.Specifications
Peak voltage: 500-5000V continuous adjustment
Peak error: ≤ 5%（1kV-5kV）
Waveform rising time: 0.5μS or 0.2μS
Power supply: 220V±10%, 50HZ
Power consumption: ≤ 100 W
Dimension: 480*260*390mm
Weight: about 24kg

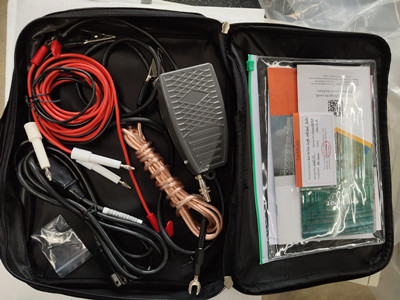

III.Accessories
If you want more information, feel free to contact us.
