HP-610B Insulator Faults Detector/Partial Discharge(PD) Detector
General Information
In High Voltage Distribution Network, it usually cause the faults of flashover, grounding or porcelain explosion because of insulators degradation. So it is important to detect and eliminate the faults of insulators, to ensure safe running of transmission and distribution line.

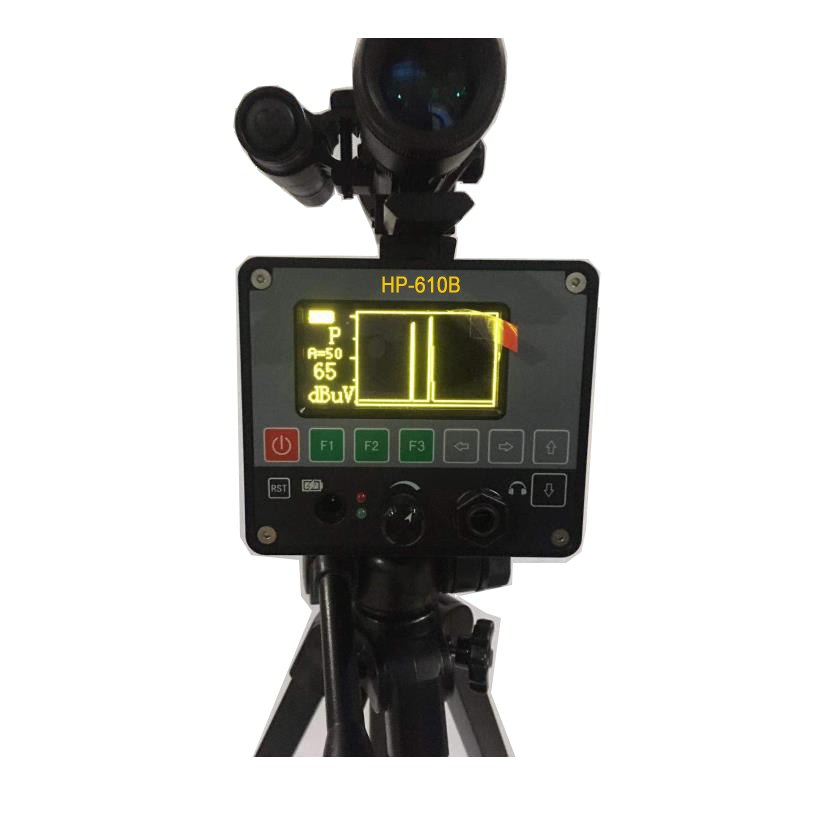

The model HP-610B is used to detect faults of insulators and locate the faults in power station, substation without cutting power. It also can be used for PD detection, corona discharge detection, discharge detection of electric equipment.
Detection Items is as following:
1. Unknown flashover fault of live insulators (trip and switch on for many times)
2. Leak current to the ground of live insulators (responsible sensitivity is no less than 1mA)
3. Composite fault of insulators.
4. Oxidation discharge detection of HV connectors.
5. Bad switch contact discharge detection of HV equipment.
6. Corona discharge detection.
7. Pollution flashover detection.
Features
l Small size, light weight, novel and beautiful structure, full function, simple and fast operation, safe and reliable.
l For low or zero value insulators can automatically alarm. It is able to detect the insulator with leakage, but has not yet broken down at critical damage.
l Long-distance detection, laser aiming, accurate positioning of the deteriorated insulator and the specific location of its equipment failure, the accuracy rate is 100%.
l Dual indication of stereo headphone and LCD display, the effect is obvious.
l Strong anti-interference ability.
l High degree of intelligence:
Ø With data locking function.
Ø Under-voltage function(If low voltage, the instrument will shut off automatically).
Ø Constant current charging, auto stops by itself after full charge.
l Lithium-ion battery with 1000 charging times, equipped with intelligent charging system to extend battery life.
l Equipped with measurement plug-in for working environmental humidity, easy to understand the real working environment of the insulator.
Specifications
Range: 6-500kV
|
Host |
Center frequency |
40KHz±2Hz |
|
Sensitivity |
Discharge mode: pinpoint arc discharge Discharge interval: 4mm |
|
|
Voltage: AC 10kV distance 18M AC 35kV distance 25M AC 110kV distance 50M AC 220-500kV distance 50M |
||
|
Operating voltage |
7.4V (lithium-ion batteries*2pcs) |
|
|
Dimension |
250*125*140mm |
|
|
Aluminum alloy bracket
|
Laser |
Output wave length: 650nm Divergency degree of light beam: 0.4mard Output power: ≤ 50mw Dimension: 16*0mm |
|
Telescopic sight/Detachable handle/Tripod standard mounting screw hole |
||
|
High frequency sensor |
Center frequency (fo): 40kHz±2Hz Center capacitance (Co): 2500±20%pF Use temperature: -20-60℃ Weight: 2.17kg |
|
|
Headphone
|
Rated impedance (Z) |
125Ω |
|
Frequency range |
100Hz-10kHz |
|
|
Sensitivity |
(1W/1m) 60dB |
|
|
Charger |
Input voltage |
AC 220V±10% |
|
Input frequency |
50Hz±5% |
|
|
Output DC voltage |
DC 8.4V |
|
|
Current |
1A |
|
|
Packing dimension of whole set: 470*340*420mm |
||
|
Working temperature: -30-60℃; Humidity: (0~100)%RH |
||
|
Complete packing weight: 7.18kg |
||
