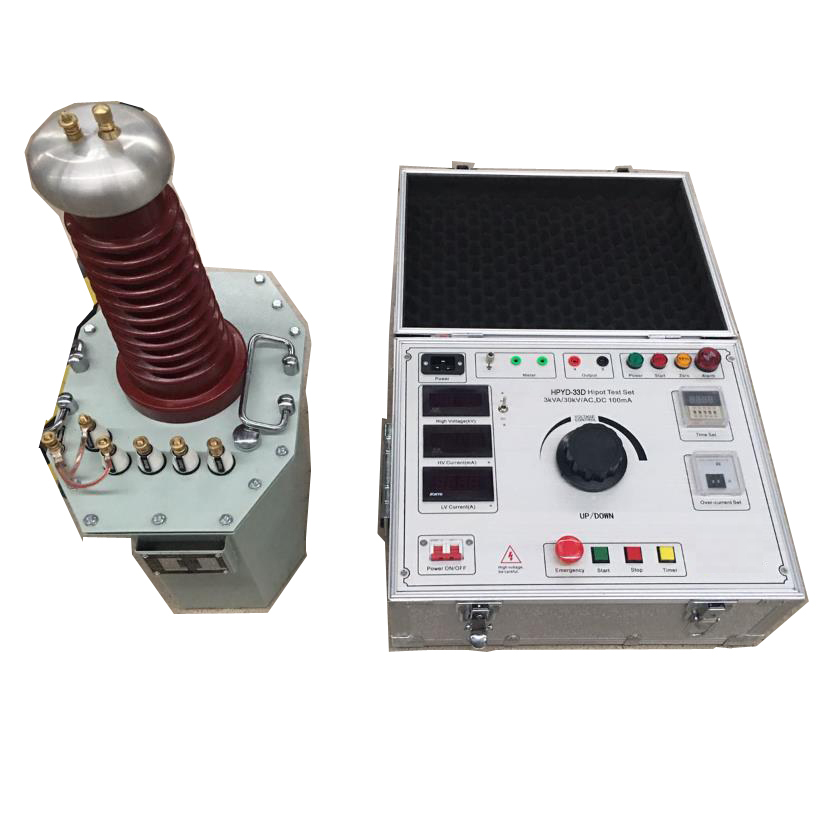

GDYD-33D 3kVA 30kV AC/DC Hipot Tester/Hipot Test Set/Withstand Voltage Tester
Application
AC hi-pot testing is the effective and direct way to test insulation strength for electrical equipment, apparatus or machines. It checks dangerous flaws which assure electrical equipment continuous working.
Typical applications include testing of transformers, switchgear, cables, capacitors, aerial motors platforms, hot sticks bucket bricks, vacuum bottles and other related equipment like vacuum interrupters, blankets, ropes, gloves, hydraulics hose, instruments transformers generators.
Features
l Digital display panel mounted controls & indicators with easy to read legend.
l Monitoring high voltage side voltage, low voltage side current and indicator of zero, power, working start, timing.
l Over-current protection, zero-starting protection, sound and light alarm.
l Continuously variable output from zero to full voltage.
l Adjustable over current protection, with trip levels variable from 10 to 110%.
l With new type time relay, time range is wider (1S ~ 99H).
l Using the latest current relay, more accurate and reliable.
l Light weight, small size, easy to move.
Technical Specifications
|
Input |
AC220V ± 10% |
|
Frequency |
50Hz ± 1 |
|
Output |
0-30kV, 100mA AC RMS 0-30kV, 71.4mA DC RMS |
|
Rating |
100%Rated-1minute, 50%-continuous |
|
Capacity |
3kVA (based on selectable) |
|
HV Source |
Insulation oil (Oil type testing transformer) |
|
Output control |
Manual control |
|
Voltage and Current accuracy |
≤1.5% (F.S) |
|
Timing range |
0-99H |
|
Metering |
Digital display, kV meter: 0-50kV, mA meter: AC 0-100mA |
|
Humidity |
85% RH |
|
Environmental temperature |
－20℃～50℃ |
|
Weight |
Control Unit: About 18kg Oil Testing transformer: About 38kg. |
Other testing transformer for selection
3/30 Dry testing transformer 3/30 Gas testing transformer
|
Type |
Insulation Medium |
Features |
Weight |
|
Oil Testing Transformer |
Insulation Oil |
High insulation strength and good heat dissipation, Cost-effective, but heavy |
38kg (3/30) |
|
Dry Testing Transformer |
Epoxy Resin |
No pollution, weight is relative light than oil testing transformer |
30kg (3/30) |
|
SF6 gas Testing Transformer |
SF6 Gas |
Outstanding nonflammability, little corona, unaffected by climate, light weight |
32kg (3/30) |
Accessories
|
Control Unit Testing transformer (HV unit) Microammeter&connection cable (To read DC current) Discharge rod Power cord Metering cable Output cable HV cable Ground cable User's guide Factory test report |
1 piece 1 piece 1 set 1 piece 1 piece 1 piece 1 piece 1 piece 1 piece 1 piece 1 piece |
If you want more information, feel free to contact us.
