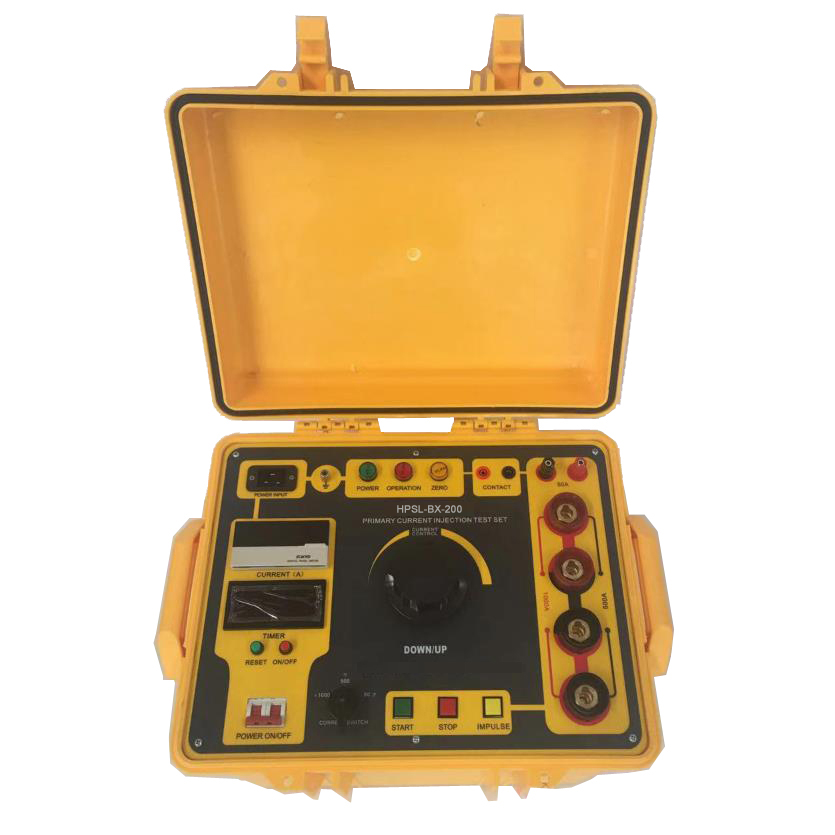

HPSL-BX-200 High Voltage Switch/Circuit Breaker/Switchgear Tester/Primary Current Injection Test Set
Product Description
HPSL-BX-200 Primary Current Injection Test Set, is mainly used in calibration for current transformer, motor protector, air switch, switch cabinet, circuit breaker, protection screen and etc.
Features
· Digital control, high anti reference ability.
· Adapts autotransformer regulator which with low power consumption and large capacitance.
· Converter has high permeability core .
· Quick connects, lock design, have good current capability.
· PVC panel.
· Build-in quick plug with high safety.
· Current range can be changed, easy to read.
· Engineering plastics box, IP67 dustproof and waterproof.
· Portable design is suitable for on site testing.
· Zero start function to prevent the test objects from damage caused by high current impulsing. The equipment only can be started at zero.
· Impulse choose function: The current value can be outputted directly without zero protection function when the equipment is under the testing for circuit breaker.
· 0-50A AC current can be outputted, suitable for over current quick break testing of secondary protection.
· Action time can be tested synchronously.
· More calibrations can be series connected at same time to improve working efficiency .
· To display the testing value of primary current, secondary current directly, convenient for CT/PT turn ratios calibration test. (Optional)
Specifications
|
Output current |
0-1000A AC in parallel, 0-500A AC in series |
|
Capacity: |
3kVA |
|
Output voltage: |
3V in parallel, 6V in series. |
|
Input voltage: |
AC220V, Single phase, 50Hz. |
|
Secondary injection current |
50A |
|
Output current |
RMS continuous adjustable. |
|
Test range |
0.001S~999.999S |
|
resolution |
1ms |
|
error |
0.005% |
|
range |
±2digs |
|
Duty Cycle |
2.5mins ON, 10mins OFF if in batch test. |
|
Current can be adjusted smoothly and continuously, accuracy level 1.0 |
|
|
Output current is standard sine wave, wave distortion is less than 5%. |
|
|
The action time of test object can be tested, the lock action time is also can be recorded at same time. |
|
|
Capacity is designed as 5 minus for short and discontinuous working. |
|

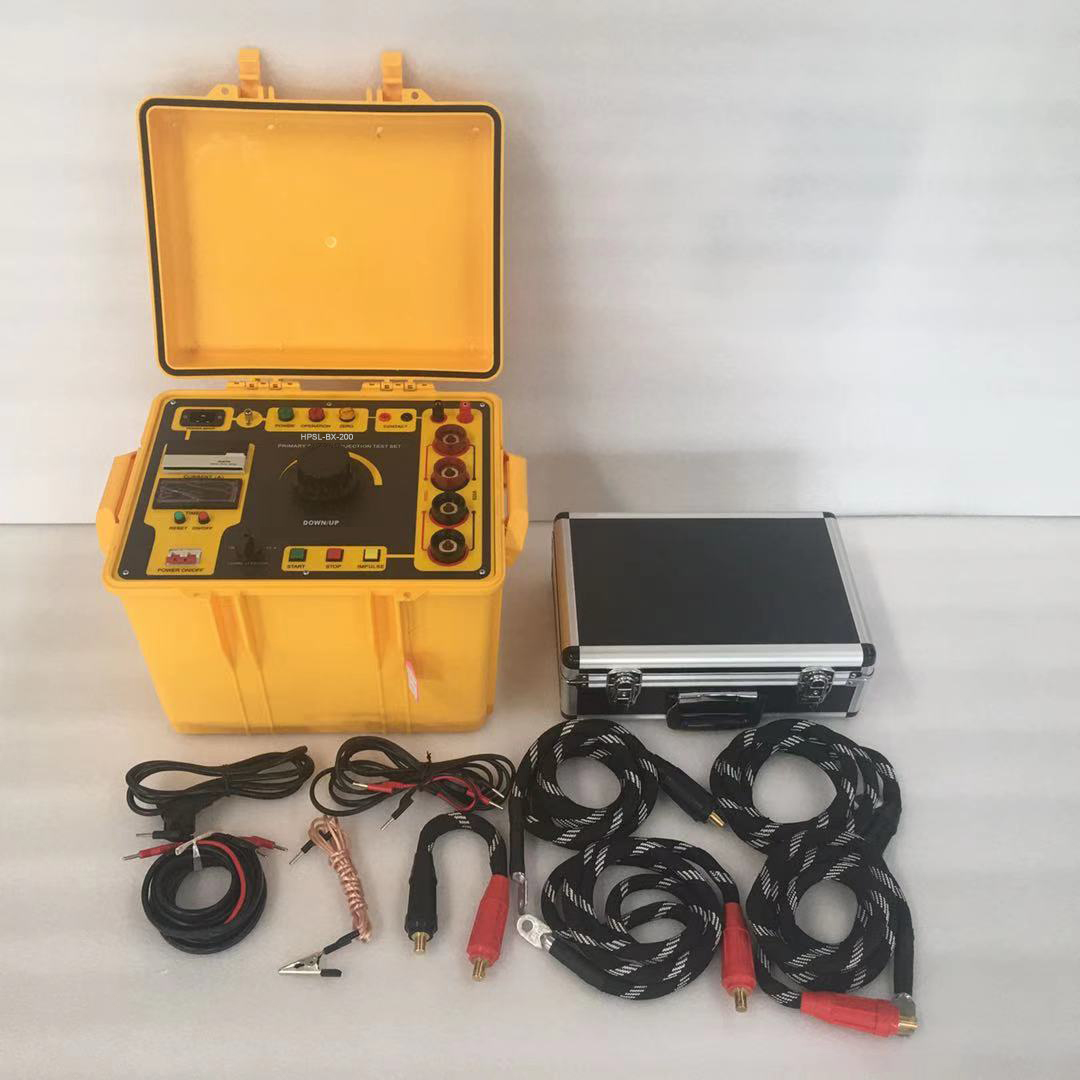

Accessories
Main unit 1 piece
Output cable 4 pcs 500A
Secondary cable 1 piece 2 cores
Ground signal cable 1 piece 2 cores
Ground cable 1 piece
Power cable 1 piece
User's guide 1 piece
Factory test report 1 piece
If you want more information, feel free to contact us.
