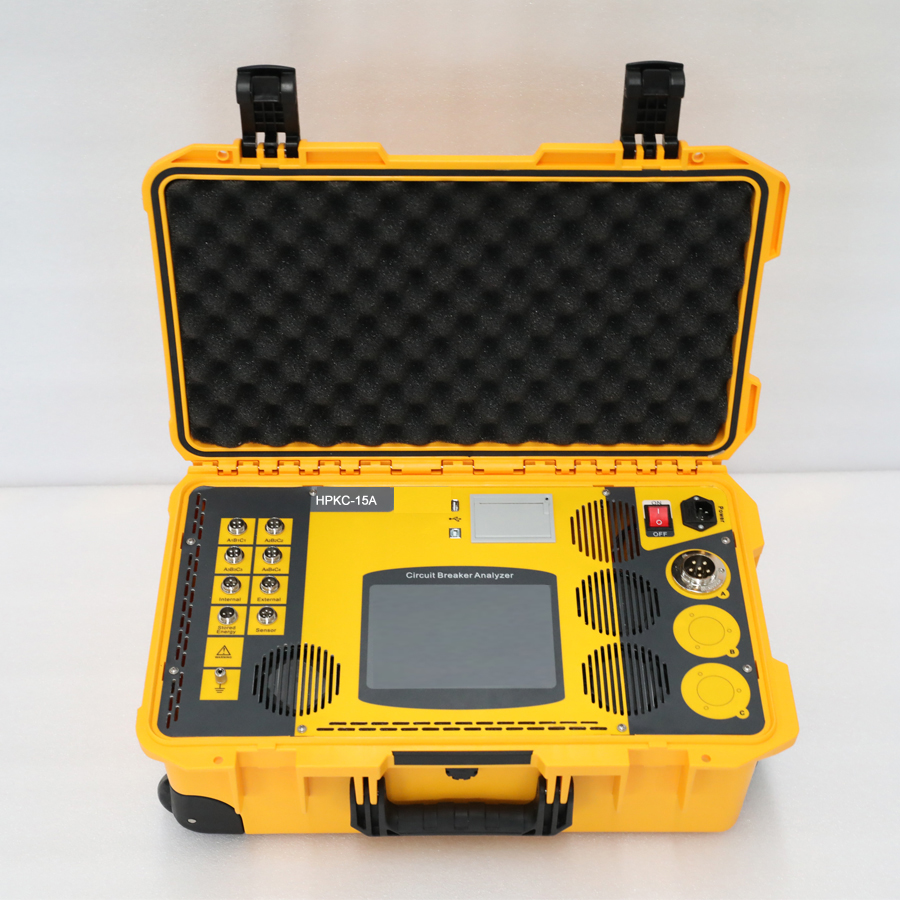

HPKC-15A High voltage power system circuit breaker/switch/switchgear dynamic characteristics analyzer/tester/test set
General information
High voltage circuit breaker is one of the most important control equipment in the power system. HPKC-15 series circuit breaker analyzer is used to test the dynamic characteristics of high voltage circuit breaker. It is easy to operate, with high accuracy.
Features
It is suitable for the mechanical test of all types of SF6 switches, GIS combination appliances, vacuum switches, and oil switches.
Strong anti-interference ability. It can be easily tested and accurately measured in 500KV substation.
Accelerometer (optional), linear sensor, rotary sensor, easy to install and simple.
When the switch is actuated once, all the data of the switch mechanical characteristic test and the corresponding waveform map are obtained.
Store the field test data and built-in real time clock, which is convenient for archiving and saving the test date and time.
With 8inch LCD screen, display all data and map, with background light, LCD contrast adjustment and power off memory.
Friendly menu operation, easy to use. With built-in printer to quickly print all data results.

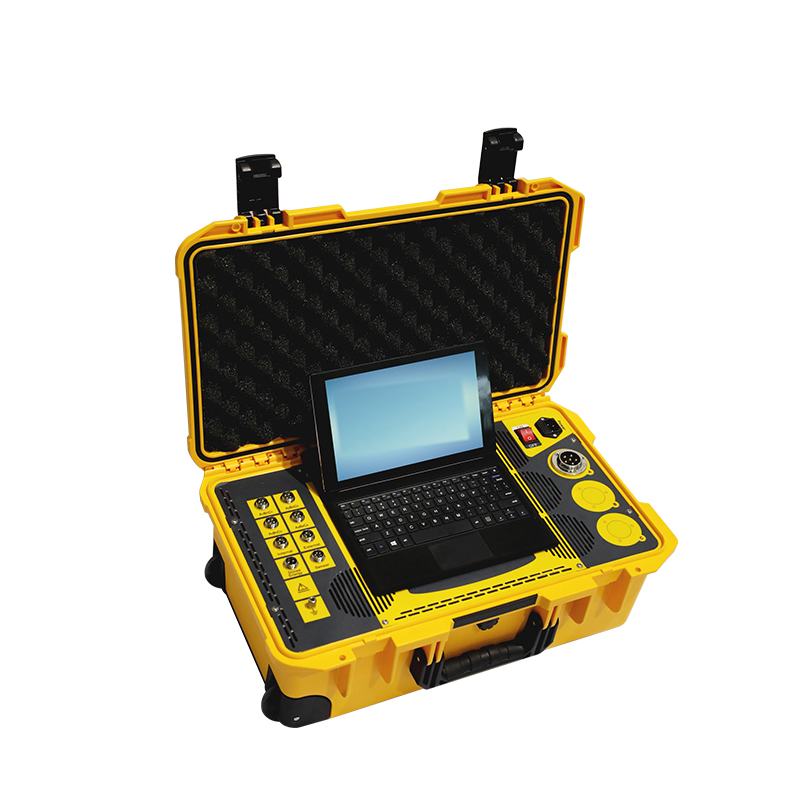

Equipped with data analysis management software, which can be operated online with PC, with WORD format file. The test results can be output to all kinds of printers printing test reports to make the field test computerized.
Combined speed selection and user-defined function set according to needs, suitable for the speed measurement of any type of switches.
Performance
Time:
Ø 12 contacts inherent open (close) time
Ø Open (close) in phase different period
Ø Open(close) phase-to-phase different period
Reclosing:
Ø C-O, O-C, C-O-C time,
Ø One combined time, two combined time, short time, no current time value.
Bouncing:
Ø the bounce time of each contact, the number of bounces, the bounce process, the bounce waveform.
Ø The amplitude of the rebound of each contact.
Speed: just open, just close speed, maximum speed, time-travel characteristic curve.
Travel: total travel, open distance, over travel, overshoot trip, rebound amplitude.
Current: The open and close current value and current waveform of open/close coils.
Operating voltage
Ø DC0-300V/20A digital adjustable circuit breaker operating power supply is provided in the machine, and the power is automatically completed.
Ø The low voltage operation test measures the operating voltage value of the circuit breaker.
Closing resistance: pre-cast time, pre-pitch waveform and resistance value of the closing resistor of 6contacts.
Graphite contact: the open, closing time and dynamic waveform of the Siemens graphite contact switch with 3 or 6-way contacts.
Double-ended grounding: under 3 or 6-way dual-end grounding, it can accurately measure the opening and closing time.
Dynamic resistance (Pre-insertion resistor): 100A change waveform of dynamic resistance during circuit breaker operation.
Specifications
Usage Environment
Input Power: 220V±10%, 50Hz±10%, Air Pressure: 86-106kpa
Temperature: -10-40℃ Humidity: ≤80%RH
Safety Performance
Insulation Resistance>2MΩ
Dielectric Strength: Shell can withstand power frequency voltage 1.5kV at 1 minute without flashover and arcing.
The Basic Parameters
Ø Time: Range 20000.0ms, resolution 0.01ms
Error 0.01ms ± 2digit within 200ms
0.1ms ± 2digit within 2000ms
1ms±2 digit within 20000ms
Ø Closing resistance: range 10kΩ, min. resolution 1Ω
Ø Graphite contact: range 200ms, min. resolution 0.1ms
Ø Double-ends grounding: range 200ms, min. resolution 0.1ms
Ø Dynamic resistor: range 10mΩ, min. resolution 1μΩ
Ø Velocity: Range 20.00m/s resolution 0.01m/s
Error ±0.1m/s± 1digit within 0-2m/s
±0.2m/s± 1digit above 2m/s
Ø Travel:
|
Types |
Range |
Resolution |
Error |
|
Vacuum breaker |
50.0mm |
0.1mm |
0.1±1mm |
|
SF6 circuit breaker |
300.0mm |
1mm |
|
|
Oil circuit breaker |
600.0mm |
Ø Current: range 20.00A, resolution 0.01A
Ø Output power: DC10-250V digital adjustable/20A (instantaneous working), resolution 1V.
Ø Dimensions: about 570mm (L)* 400mm (W)* 240mm (H)
Ø Weight: about 12kg

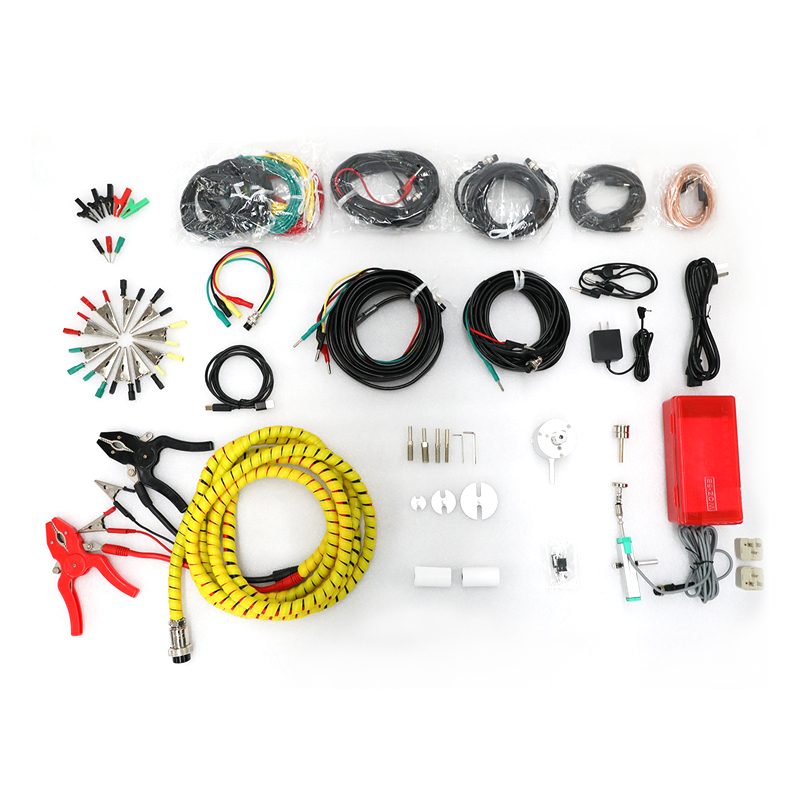

Packing List
|
Main Unit |
1 pc |
|
Accessory case |
1 pc |
|
Rotary speed sensor 50mm |
1 pc |
|
Linear speed sensor |
1 pc |
|
Speed signal connection cable (5core shielded wire) |
1 pc |
|
Opening and closing control cable (3core sheathed cable) |
1 pc |
|
External trigger detects cable (red/black, 2-core) |
1 pc |
|
Ground cable |
1 pc |
|
Contact test cable (4core sheathed cable) |
1 pc |
|
Contact test extended cable (5M, yellow, green and red each one-piece, black 3pcs) |
6pcs |
|
Short cable (0.5m black, 2m black) |
2 pcs |
|
Power cord |
1 pc |
|
Universal Joint and magnet base |
1 pc |
|
Test clips and thimbles |
18pcs |
|
Contact resistance test cable |
1 pc |
|
Software |
1 pc |
|
Print paper |
2 rolls |
|
User's guide |
1 pc |
|
Factory test report |
1 pc |
