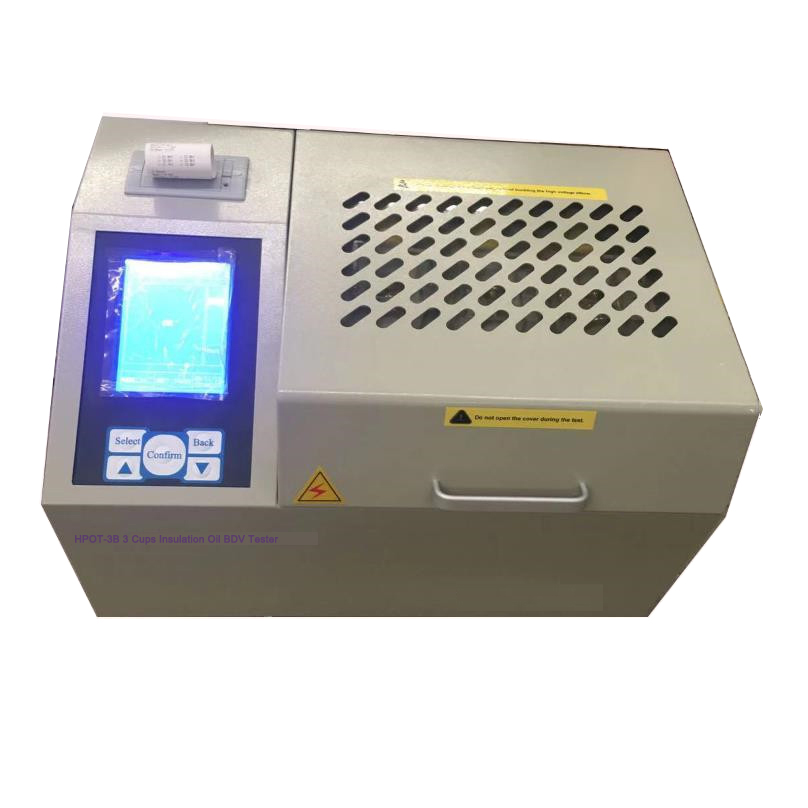

HPOT-3B HPOT-3B 100kV 3 Cups Insulation Oil Breakdown Voltage (BDV)Tester/Insulation Oil Dielectric Strength Tester
HPOT-3B 100kV 3 Cups Insulation Oil Breakdown Voltage Tester HPOT-3B takes a single-chip microcomputer as the core, realizes all the test automation, high measurement accuracy, greatly improves the work efficiency, and also greatly reduces the labor intensity of the staff.
Standards
IEC 156:1995 Insulating liquids- Determination of the breakdown voltage at power frequency
Features
Adopts a microprocessor, three cups in one, and automatically completes the operations of boosting, holding, stirring, standing, calculating, printing, etc., and can perform oil circulation withstand voltage test in the range of 0-100kV.
LCD screen display.
The operation of this instrument is simple, the operator only needs to make simple settings, and the instrument will automatically complete the test of 1-3 oil samples according to the settings. For each oil sample, the breakdown voltage value and number of cycles are automatically stored. After the test is completed, the thermal printer can print out the breakdown voltage value and average value of each oil sample.
Power-down hold, can store 100 test results, and can display the current ambient temperature and humidity.
It adopts single-chip microcomputer control for uniform speed boost, and the voltage frequency is accurate to 50Hz, making the whole process easy to control.
With over-voltage, over-current limit and other protection to ensure the safety of operators.
With temperature measurement display function and system clock display.
Standard RS232 interface, can communicate with computer.
Specifications
|
Output voltage |
0-100kV optional |
|
Power distortion rate |
<3% |
|
Voltage increasing speed |
0.5~5kV/s adjustable |
|
Display |
Large LCD screen |
|
Electrode gap |
standard 2.5mm |
|
Boost times |
1~10 times |
|
Standing time |
15 min (adjustable) |
|
Boost interval |
5 minutes (adjustable) |
|
Booster capacity |
1.5kVA |
|
Measurement accuracy |
±3% |
|
Power input |
AC220V± 10%, 50Hz±1Hz |
|
Power |
200W |
|
Working temperature |
0-45℃ |
|
Humidity |
<75%RH |
|
Dimension |
585mm*390mm*410mm |
|
Weight |
43kg |
Accessories
HPOT-3B Tester 1set
Oil cup 3pc
Power cord 1pc
Ground cable 1pc
Spare fuse 2pcs
Stirring nut 2pcs
Standard gauge 2.5mm 1pc
Tweezer 1pc
Print paper 1rolls
Allen wrench 1pc
User's guide 1pc
Factory test report 1pc
If you want more information, feel free to contact us.
