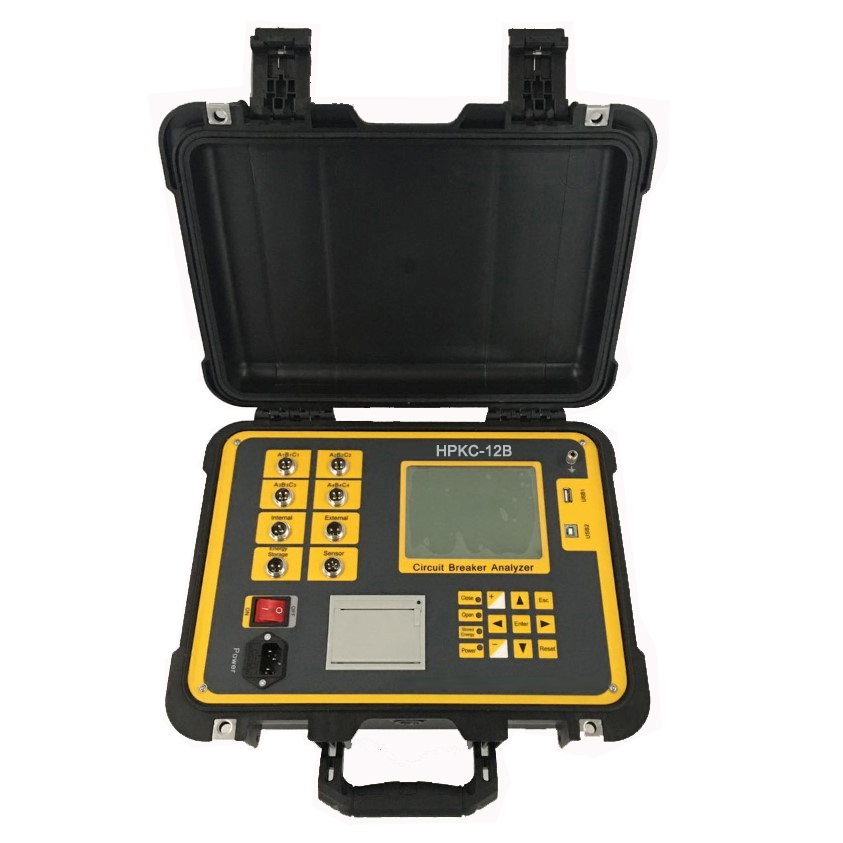

HPKC-12B High Voltage Circuit Breaker/Switch/Switchgear/Timing/Dynamic Characteristics Test Set/Tester/Analyzer
I. General information
High voltage circuit breaker is one of the most important control equipment in the power system. HPKC-12B is used to test the dynamic characteristics of high voltage circuit breaker. It is easy to operate, with high accuracy.
II. Features
Time: the open/close time, in phase synchronization, phase-to-phase synchronization of 12 contacts.
Reclose: close-open, open-close, open-close-open time for each contact.
Bounce: close bounce time, times, process and waveform of each contacts.
Velocity: velocity at contact just opening and just closing, maximum speed, time-travel characteristic curve.
Travel: total travel, open travel, over travel, travel overshoot, bounce amplitude.
Current: open/close current, current waveform diagram of the open/close coil.
Operation voltage: built-in DC0~300V/20A digital, adjustable power source of breaker, automatically complete LV action test of circuit breaker and measure action voltage value of circuit breaker.
It is suitable to test the mechanism parameters of all types of SF6 circuit breaker, GIS combination electric equipment, vacuum circuit breaker, oil circuit breaker.
Strong anti-interfere ability. It also can easily test and accurately measure even inter-bus is live in 500kV substation.
With universal velocity sensor(optional), linear velocity sensor, rotary sensor, easy to install.
Only one time action to obtain all data and corresponding waveform of breaker mechanism test.
Storage test data, built-in real-time clock, which is convenient to save test date and time.
LCD screen display, with contrast adjustment and power-off memory.
Built-in printer, to get all data and diagram at any time quickly.
The corresponding analysis software is compiled according to the definition of opening, closing velocity. It is suitable for speed measurement for any types of switch.
III. Specifications
Usage Environment
Input Power: 220V±10%, 50Hz±10% Air Pressure: 86-106kpa
Temperature: -10-40℃ Humidity: ≤80%RH
Safety Performance
Insulation Resistance>2MΩ
Dielectric Strength: Shell can withstand power frequency voltage 1.5kV at 1 minute without flash-over and arcing.
Basic Parameters
a. Time: Range 20000.0ms resolution 0.01ms
Error 0.01ms ± 2digit within 250ms
0.1ms ± 2digit within 2500ms
1ms±2 digit within 20000ms
b. Closing resistor: Range: 10KΩ resolution: 1Ω
c. Velocity: Range 20.00m/s resolution 0.01m/s
Error ±0.1m/s± 1digit within 0-2m/s
±0.2m/s± 1digit above 2m/s
d. Travel:
|
Types |
Range |
Resolution |
Error |
|
Vacuum breaker |
50.0mm |
0.1mm |
0.1±1digit |
|
SF6 circuit breaker |
300.0mm |
1mm |
|
|
Oil circuit breaker |
600.0mm |
e. Current: range 20.00A resolution 0.01A
f. Output power: DC0-300V digital adjustable / 20A(instantaneous working), resolution 1V.
g. Dimensions: 360mm (L)* 280mm (W)* 300mm (H)
h. Weight: 10kg

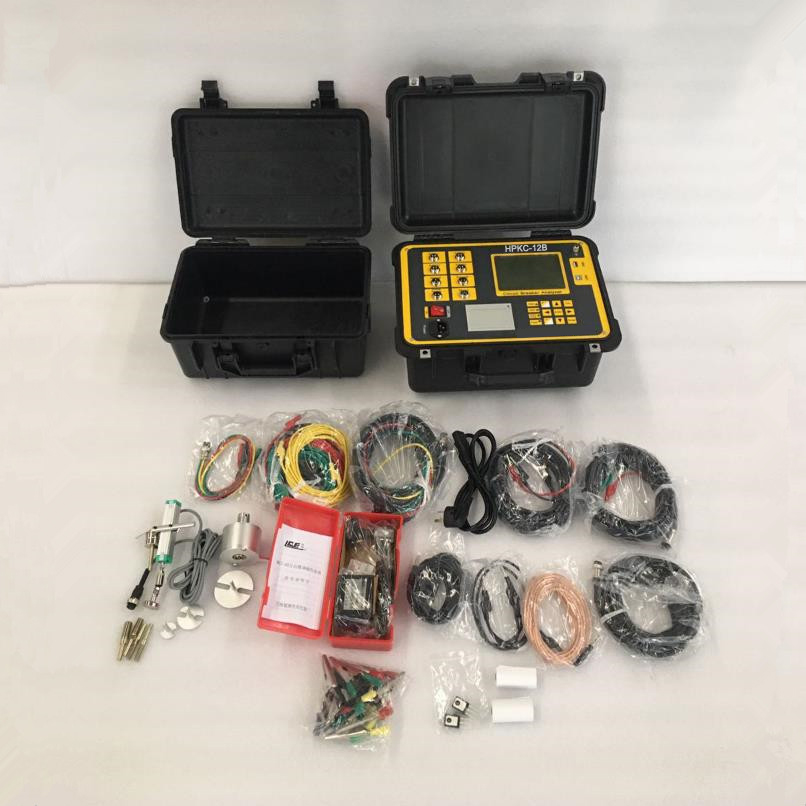

Packing List
No.
Name
Qty.
Unit
1
Main Unit
1
pc
2
Speed signal transmission cable (5-core shielded wire)
1
pc
3
Opening and closing control cable (3-core sheathed wire)
1
pc
4
External trigger and energy storage detection line (2-core sheathed wire)
1
pc
5
Contact test cable (4-core sheathed wire)
1
pc
6
Contact test and extension cable (5 meters, one piece of yellow, green, red, 3 pcs of black)
6
pcs
7
Ground cable
1
pc
8
Short cable (0.5 meters, black)
1
pc
9
Short cable (2.0 meters, black)
1
pc
10
Test clamp and thimble
18
pcs
11
Power cord
1
pc
12
Rotary speed sensor
1
pc
13
50mm Linear speed sensor
1
pc
14
Universal Joint and magnet base
1
set
15
Special fixed installation accessories
1
set
16
Print paper
2
rolls
17
User’s guide
1
pc
18
Factory test report
1
pc
