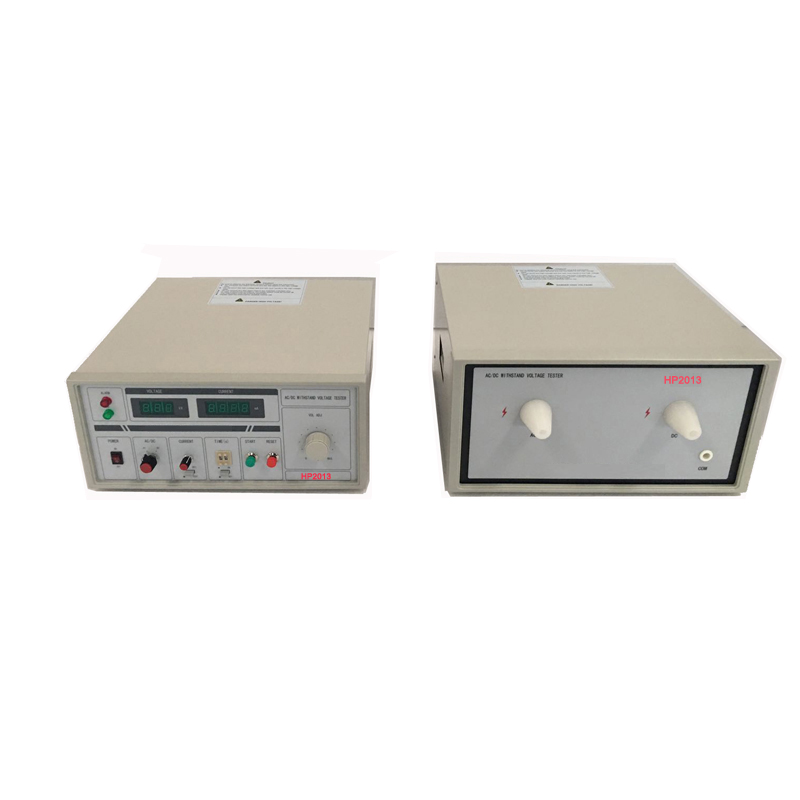

HP2013 AC/DC Withstand Voltage Tester Portable AC DC 20kV Hipot Test Set for insulating material(wires and cables, labor protection appliances, etc)
General Information
HP2013 AC/DC Withstand Voltage Tester is mainly used to test electronic components, electric device, electrical cables. Besides, it can also serve as polarization power supply. With advanced circuit design, this series can be customized as per user’s request.
Features
Voltage display: it displays the output voltage, AC current displays RMS value.
Current display: it displays current in the test object, AC current displays RMS value.
Alarm light: when current in the test object exceeds preset current, test current is cut off, and alarm is given at the same time. Alarm light is on for 1 second with alarm sound.
HV indicator light: when the light is on, it means there is some output voltage, that is, after pressing “Start”, HV indicator light is on and the instrument enters the test state.
Voltage regulation knob: adjust the knob to change voltage value to be measured, turn clockwise to boost voltage, otherwise to reduce it.
Power switch: to connect/disconnect power supply.
AC/DC switch: the readings of AC/DC switch refer to AC/DC voltage values.
Current cut-off knob: turn “Set/Test” switch to “Set” position, turn current cut-off knob to set value between 0.5~20mA.
Set/Test switch: press the button to display preset value on the ammeter, release to display actual current passing through the test object.
Time control dial: to select preset time, increase/decrease the time by 1 second based on “0” and “1” on the dial. The max. value can reach 99.
Time control switch: turn the switch to “ON” position, and time controller is activated.
”Start” button: press to produce high voltage output.
”RST” button: press to cut off test voltage. Note: if there is only AC current or DC current, AC/DC switch is not available.
Specification
|
Power supply |
AC 220V±10%, 50Hz±5Hz |
|
Output voltage |
AC/DC: 20KV |
|
Cut-off current |
AC/DC: 0.5~20mA |
|
Output voltage accuracy |
±5%±3digits |
|
Cut-off current accuracy |
±(5%±0.1mA) |
|
Measurement time |
0~100s |
|
Working conditions |
Temperature: 0~35℃ Humidity: ≤80%RH Pressure: ≤86KPa~106KPa |
Accessories
|
Main unit |
1 set |
|
Power cord |
1 piece |
|
Aviation cable |
1 piece |
|
HV test line |
1 piece |
|
LV test line |
1 piece |
|
User’s guide |
1 copy |
|
Packing list |
1 copy |
|
Warranty card |
1 copy |
|
Factory test report |
1 copy |
If you want more information, feel free to contact us.
Company Profile
HONOPOWER DEVELOPMENT Co., Ltd. is a professional manufacturer specialized in electrical safety testing equipment, especially high voltage testing equipment.
We had researched and produced and sell test equipment for over ten years，our products have been sold well nationwide and worldwide.
Our test equipment can test for various kinds of products, such as SF6 Gas, GIS Systems,Transformers,Generators, Circuit Breakers, Relays, Surge Arresters, Insulators, Cables, Casings and CT/ PTs, etc.
