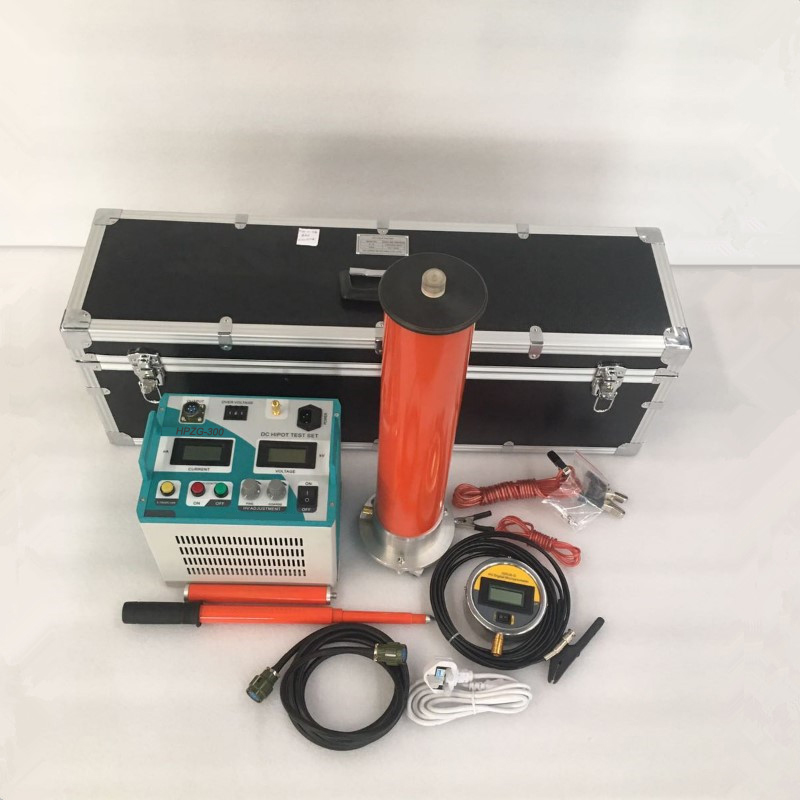

HPZG-300 DC Hipot Test Set DC High Voltage Tester for Zinc Oxide Arrester
/Generator/Transformer
Product Description
HPZG-300 series of DC high voltage tester is testing DC high voltage for zinc oxide arrester, magnetic blowing arrester, power cables, generators, transformers, switches and other equipments, which is suitable for electric power branch, power department of factories, scientific research units, railway, chemical industry, power plants.
Features
With High Frequency Voltage-multiplying circuit and PWM pulse width modulation technology.
Higher voltage stability, smaller ripple coefficient.
75% VDC 1mA function button, convenient for Zinc Oxide arrester test.
High precision,exact measure,figure display,with good anti-interference function.
High stabilization of voltage regulation and regulates voltage smoothly from zero.
With protection functions of over-voltage, over-current, returning-zero, ground.
Negative polarity output, zero-start, continuous adjustment.
Number dial switch for over-voltage set function, which can display voltage value clearly.
Specifications
|
Power supply |
AC 220V±10%, 50Hz, single phase |
|
Rated voltage |
60kV |
|
Rated current |
5mA |
|
Rated power consumption |
300W |
|
Voltage meter accuracy |
1.0% of the reading ± 2digit |
|
Current meter accuracy |
1.0% of the reading ± 2digit |
|
Ripple factor |
≤1% |
|
Voltage stability |
Random fluctuation, when power supply voltage change±10%,≤1% |
|
Over-load ability |
10mins @ No-load voltage is 110% of rated voltage |
|
Working mode |
Intermittent use |
|
Working environment temperature |
-10ºC--40ºC |
Company Profile
HONOPOWER DEVELOPMENT Co., Ltd. is a professional manufacturer specialized in electrical safety testing equipment, especially high voltage testing equipment.
We had researched and produced and sell test equipment for over ten years，our products have been sold well nationwide and worldwide.
Our test equipment can test for various kinds of products, such as SF6 Gas, GIS Systems,Transformers,Generators, Circuit Breakers, Relays, Surge Arresters, Insulators, Cables, Casings and CT/ PTs, etc.
